What Are CNC Machining Centers and How Do They Define Modern Precision

What Are CNC Machining Centers in Modern Manufacturing?

CNC machining centers form the main support of today’s exact manufacturing. They mix automatic work, quick action, and sharp detail to make tricky parts that people could hardly build by hand. Think of airplane turbine blades or body implants for doctors. These tools give steady quality and the same results time after time in many fields. In fact, I’ve seen shops where one machine runs for hours without a hitch, turning out hundreds of identical pieces.

Definition and Core Characteristics of CNC Machining Centers

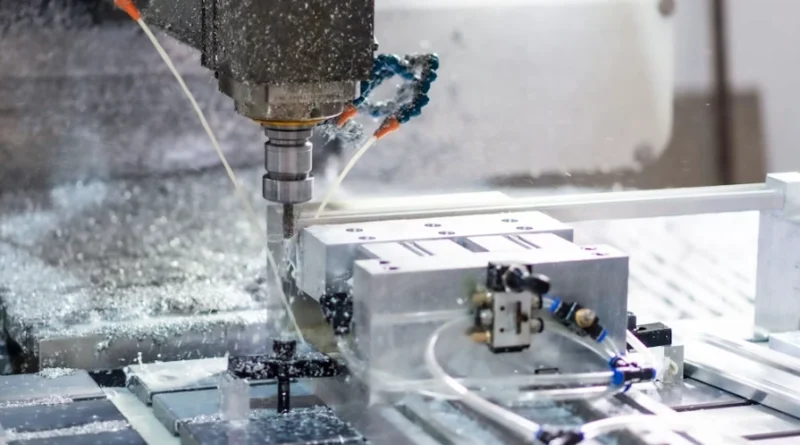

CNC machining centers are automatic machine tools run by computer programs for very exact jobs. They pull together several cutting tasks like milling, drilling, and tapping in just one setup. This lets them keep making things without often moving the workpieces around. The build usually has a spindle, tool magazine, and automatic tool changer. These parts work together to support non-stop runs. Picture them as small factory setups that handle many tasks in a single hold.

Technological Evolution of CNC Machining Centers

The growth of CNC machining centers started with old number control setups that used punched tape for putting in data. As years passed, they turned into full computer systems that handle tough G-code orders right from digital drawings. Linking with CAD/CAM software boosts the flow from design to making by tying fake models to real work. New systems now have smart control and live watching that change settings on their own to keep exactness even when load or heat shifts. For example, in a busy plant, this means fewer mistakes from heat warping the metal during long shifts.

Key Components That Define CNC Machining Centers

The spindle acts as the main part of any machining center. It sets the cutting power and speed options. Tool changers let multi-tool jobs happen without people stepping in. This cuts time in detailed work. Control units read G-code orders to shape complex forms with great sharpness. All these parts make a close-knit setup where machine build and digital guidance blend smoothly. It’s like a well-oiled team where each bit knows its role.

How Do CNC Machining Centers Achieve Precision and Consistency?

Sharp work in CNC machining centers comes from solid hardware and clever control setups. Each piece, from servo motors to cutting tools, helps keep things steady over many repeats. Sometimes, a tiny tweak in setup can make all the difference in a batch of parts.

Role of Control Systems in Precision Engineering

Servo motors and feedback loops hold position sharpness all through the jobs. They keep checking real moves against set commands. Closed-loop systems fix errors right away for size steadiness over many batches. Smart software steps also plan tool routes to cut extra moves or shakes that might harm the smooth finish.

Mechanical Stability and Structural Design Factors

Strong build matters a lot for keeping sharpness at fast paces. Tough machine frames cut shakes during big cutting work. Linear guideways give even slides along each path for results you can count on. Lots of top machines add heat fix systems. These fight back against growth from heat during long runs. In practice, this keeps a part’s edges true even after hours of grinding away.

Influence of Tooling and Cutting Parameters on Precision

Tool stuff and shape affect the smooth surface right away. Picking the best mix stops shakes or early tool damage. Right feed speeds and spindle turns must match the material’s toughness for best outcomes. Coolant setups also steady the heat in long cutting times. This stops heat twists that might hurt sharpness. Take aluminum parts, for instance; wrong speeds can leave rough spots that need extra sanding.

Why Are There Different Types of CNC Machining Centers?

Various kinds of CNC machining centers show up because making needs change a lot. Some jobs call for flat sheets, while others need curved shapes with moves on many paths at once. It’s not one size fits all in the factory world.

Vertical Machining Centers (VMC) Characteristics and Applications

Vertical machining centers (VMCs) have spindles pointing up and down. They fit flat or sheet-like pieces well. Shops use them a lot for mold building, die casting, and exact part making. Gravity helps clear chips by letting them fall down paths. Their small shape works great in tight spaces. You don’t lose power, but you save room in a crowded shop floor.

Horizontal Machining Centers (HMC) Capabilities and Advantages

Horizontal machining centers (HMCs) have spindles lying flat. They handle heavy cutting like engine blocks or big frame parts. Pallet changers let work go on with little wait time. One pallet loads up while another gets cut. Better chip clearing boosts surface clean on tricky parts. Deep holes won’t fill with junk as much. This setup shines in auto plants churning out thousands of blocks yearly.

Five-Axis Machining Centers for Complex Geometry Production

Five-axis machines let moves happen at the same time on paths X, Y, Z, plus turns A and B. They shape detailed forms in one go. This cuts setup times way down. You process many sides in a single hold. Plane makers, health gear builders, and car folks count on five-axis for tight-fit items like turbine blades or bone fixes. In one case, a shop cut setup time from days to hours with this tech.

How Do CNC Machining Centers Integrate With Digital Manufacturing Systems?

In current factories, CNC machining centers don’t stand alone. They join big digital networks that link design info, work plans, and live checks. This web makes everything flow better, like a connected team passing the ball smoothly.

Connectivity With CAD/CAM Platforms for Seamless Workflow Integration

Straight info swap between CAD/CAM setups cuts hand-done program slip-ups from design to making steps. Test tools check tool routes before real cuts to avoid crashes or lost stuff. Cloud holding lets far-off reach to fresh design files. Engineers can tweak programs fast if changes hit during making. It’s a real time-saver when a client calls with a last-minute tweak.

Role of IoT and Smart Sensors in Process Monitoring

Built-in sensors watch shakes, heat, spindle weight, and more during runs. Guess-ahead fix steps look at this info to spot trouble early. This drops surprise stops a lot. Info crunching also lets you stack up work across machine groups. You can measure output better that way. Picture a dashboard showing which machine needs oil before it quits.

Automation Through Robotics and Material Handling Systems

Auto work goes past just cutting. Robot arms grab and drop parts on their own. Auto-guided carts move stuff between spots without fuss. This setup backs no-light making where machines run alone at night. They keep output steady without folks around. In big plants, this means 24/7 runs with the same clean results.

What Are the Advantages of Using CNC Machining Centers in Production Environments?

Factories pick CNC machining centers for more than just sharpness. They smooth out work flows and cut costs over time. Plus, they handle tough jobs that would wear out workers fast.

Enhanced Productivity Through Automation and Multi-Axis Capability

At-the-same-time multi-path work shortens run times over hand setups that need moves after each slice. Auto tool swaps cut wait times between steps. Making flows almost without breaks from one task to the next. A three-axis job might take 20 minutes; add axes, and it’s down to 10.

Improved Quality Control Through Consistent Repeatability

Set steps promise the same output in batches no matter the worker’s skill. During-run size checks confirm limits while cutting goes on. Not just after checks. This cuts fix work and boosts good output in exact making spots. It’s like baking cookies—same recipe, same taste every tray.

Cost Efficiency Over Long-Term Production Cycles

Up-front cost looks big, but savings add up from less worker watch. Smart stuff use cuts waste with exact slice paths from CAM steps. Set cutting keeps tools lasting longer before swaps. Over a year, that can save thousands in bits and labor. One shop I know halved their scrap pile this way.

How Do CNC Machining Centers Influence Future Manufacturing Trends?

CNC tech keeps growing toward closer ties with new digital aids. These changes shape how plants work around the world. It’s exciting to see where it heads next, maybe even smarter than today.

Adoption of Hybrid Manufacturing Combining Additive and Subtractive Processes

Mixed machines blend 3D build with usual milling in one unit. They fit quick model making or fix jobs needing build-up and cut-down at once. For repairs on old parts, this saves shipping them out.

Expansion of Artificial Intelligence in Adaptive Machining Strategies

Smart thinking grows in change-fit plans. Machines learn from sensor info live to tweak settings based on stuff acts or wear seen in runs. This could mean fewer bad parts from surprises like a tough spot in metal.

Sustainability Initiatives Through Energy-Efficient Operation Models

Power watch systems track use over whole lines. Bosses spot weak spots easy. Re-use drives grab stop energy when spindles slow. It’s a small win, but adds up for green making around the globe. Factories aiming for net-zero love these tweaks.

How Should Manufacturers Choose the Right CNC Machining Center for Their Operations?

Picking the best machine hinges on your exact making aims, not just the name on it. Rush into it, and you might regret the fit later.

Evaluation Based on Production Volume and Part Complexity

Jobs with many types but few each time gain from bendy five-axis setups. They deal with varied shapes well without constant tool or hold changes. Fixed setups suit big runs of simple stuff, but lack flex for mixes.

Consideration of Material Types and Cutting Requirements

Stuff toughness sets spindle strength pick. Hard mixes need strong spindles that hold pull under weight steady. Cool setup must fit heat from each stuff type. It ensures tool match over jobs stays solid. Steel versus plastic? Totally different needs.

Assessment of Integration Potential With Existing Infrastructure

Fit with current CAD/CAM tools eases work shift big time. Workers stick to known screens in your spot’s setup. Net links back central info handle well. Grow choices let step-up adds later without big swap costs hitting projects. It’s smart to check plugs before buying.

FAQ

Q1: What industries rely most on CNC machining centers?
A: Aerospace, automotive, medical device manufacturing, electronics housing fabrication, and mold-making sectors depend heavily on these machines due to their precision requirements.

Q2: Can older manual mills be converted into CNC machining centers?
A: Yes, retrofitting kits exist that replace manual controls with servo motors and computerized controllers; however, performance may not match purpose-built modern units fully.

Q3: How often should calibration be performed on a CNC machine?
A: Typically every six months under normal usage conditions; more frequently if operating continuously under heavy loads or tight tolerance specifications.

Q4: What is lights-out manufacturing?
A: It refers to fully automated production environments where machines operate unattended overnight using robotics for handling tasks safely without human presence onsite.

Q5: Are five-axis machines always better than three-axis ones?
A: Not necessarily—five-axis units excel at complex geometries but cost more upfront; simpler three-axis models remain practical for flat parts or basic contouring jobs where extra motion isn’t required.
