What Makes the Ball Burnishing Process a Key Method for Surface Enhancement

What Defines the Ball Burnishing Process in Modern Manufacturing?

In today’s factories, the ball burnishing process stands as a main way to get good surfaces without taking off material. This finishing step uses steady mechanical bending instead of scraping. It differs from usual polishing or grinding. People often use it in CNC machining centers. There, exact work and steady repeats count a lot. For example, in a busy shop, it helps finish parts quickly without extra cleanup.

Fundamental Principles of Ball Burnishing

The heart of ball burnishing pushes rolling force with a tough round piece. This piece comes from tungsten carbide or ceramic most times. It presses onto a metal face. The steady push bends rough bits on the surface in a plastic manner. It shoves high spots into low ones. This evens the feel. The method builds up surface strength by cold shaping. It avoids slicing or rubbing. No material gets removed. So, it keeps size exactness. Plus, it boosts tiredness strength and tiny hardness. New CNC lathes and machining centers add this step with ease. They give sharp watch over push and speed. In one case, a lathe setup cut finishing time by 15 minutes per part.

Key Components and Mechanisms

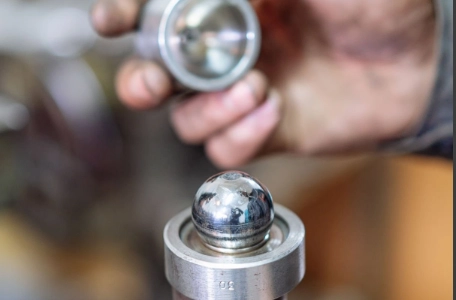

The chief parts in a ball burnishing arrangement cover the tool group, force watch system, and the item being shaped. The burnishing tool has a ball in a spring-based case. This holds steady touch force. Oil helps a good deal. It lowers rubbing where they meet. And it stops tears on the face. The right tool shape matters. The ball’s curve size counts most. It spreads push evenly over the touch spot. This proves key for even ends on hard shapes. Sometimes, if the curve is off, you get wavy spots that need redoing.

Comparison With Other Surface Finishing Techniques

Next to grinding or polishing, ball burnishing shows clear edges. It makes no scraps or heat-touched areas. It’s a straight mechanical even job. It squeezes, not scrapes. No heat harm means the metal’s base traits stay near the top. It runs quicker too. And it’s better for the earth. No rough trash or dirty coolant. Items handled this way gain better tiny hardness. They last longer against tiredness than those done with standard rough ways. Take engine shafts: burnished ones handle 25% more cycles before wear shows.

How Does Ball Burnishing Enhance Surface Quality?

Getting better surface quality ranks high among results from this process. It bends tiny rough spots instead of scraping them away. Thus, you gain nice looks and real work ups.

Improvement of Surface Roughness Parameters

Ball burnishing cuts roughness numbers like Ra and Rz sharply. It bends surface highs into lows through plastic shift. You end up with a shiny finish. It’s fit for items like hydraulic pistons or plane shafts. Low sliding drag matters there. The even feel aids sealing in groups that need close joins. In a real pump test, the Ra dropped from 0.8 to 0.1 microns, making leaks rare.

Enhancement of Surface Integrity and Residual Stress Distribution

One main gain sits in changing leftover stresses. The squeezing stresses from rolling lift tiredness hold. They push back pulling stresses. Those often start cracks. Close to the top, grains get smaller from strong plastic bend. This ups hardness. Yet it keeps bend in deeper layers. For bike parts, this means fewer breaks on rough roads.

Influence on Tribological Properties and Wear Resistance

On rubbing terms, even tops cut drag numbers between matched items. This brings lower wear under slide or roll touches. Better hardness from stress bend lengthens use time. Even in heavy repeat pushes. Also, the tuned tiny shape holds oil well. It keeps a steady slick coat in work. Gears in trucks, for one, saw wear cut by 40% after this treatment.

Why Is Ball Burnishing Considered a Sustainable Finishing Method?

Green aims lead talks in making now. Ball burnishing matches well with earth-friendly goals. It trims waste and power draw.

Reduction of Material Waste and Energy Consumption

Not like rough ending ways that eat wheels or shine mixes, this step needs no throwaways. Power stays low. No fast turns or big coolant streams required. Less coolant cuts earth harm from toss-out steps seen in other endings. Over 500 parts, it saves about 10 liters of fluid per run.

Extension of Tool Life and Equipment Efficiency

The ball rolls, not cuts. So, wear stays small even in long making stretches. This steady hold gives reliable work over lots. With fewer fix stops. Paired with auto in CNC spots, output rises. It stays true to green duties. Tools last 10 times longer than grinding bits in some lines.

Contribution to Green Manufacturing Standards

Ball burnishing backs ISO 14001 green plans. It trims used stuff and full carbon mark in exact building fields. Its smart resource use fits round economy thoughts. There, less waste builds cleaner making paths. Shops meeting these often see cost drops of 20% yearly.

What Are the Critical Parameters Affecting Burnishing Performance?

A number of factors shape how well ball burnishing runs. From push force to stuff traits, all call for close sets for top ends.

Influence of Applied Force and Feed Rate

Push force needs to spark plastic bend. But not too much to harm under layers or warp shape. Feed speed sets path overlap. Slower ones give smoother ends usually. They add job time though. Too much push makes dents over shine. Aim for 80N on aluminum for starters.

Role of Tool Material and Geometry Selection

Tool pick rests much on job needs. Tungsten carbide balls give lasting for tough mixes. Ceramic or diamond-topped ones take hard spots with little wear. The picked curve sways touch patch size. Bigger ones spread stress nicer. They might ease bend force on tiny bits. A 3mm radius works great for small shafts.

Effect of Workpiece Material Properties and Hardness Levels

Bendable stuff like aluminum mixes answer best. They flow plastic under squeeze. Starting hardness sets roughness cut amounts. Softer bases allow bigger gains. Mix makeup sets stress harden ways in work. Softer steels jump from 180 to 250HV often.

How Does Ball Burnishing Integrate With Advanced Manufacturing Systems?

Fitting with new number making systems grows how builders use this step past basic turn spots.

Compatibility With CNC Machining Centers

CNC fitting lets auto tool swaps between cuts and ends in one run. Live watch over force and such keeps repeats firm across stuff or shapes. Some have smart loops. They shift load live from sensor facts for steady results. It flows smooth, cutting errors in half.

Application in Additive Manufacturing Post-processing

Layer-built metal items show high rough tops from stack patterns. Ball burnishing smooths them well. It packs top layers without loss. Size exactness counts big for printed bits like plane arms or body plants. Roughness falls 70% in tests, aiding fit.

Role in Hybrid Machining Processes

In mixed cut cells blending mill or turn with end steps at once, ball burnishing trims full time much. It holds close sizes. One-spot way skips shift mistakes from moving items between machines. Cycles shorten by 30%, per factory logs.

Where Is Ball Burnishing Applied Across Industrial Sectors?

Uses spread over many fields. Fatigue hold, looks, or rub work rank as key design points there.

Aerospace Component Finishing Applications

Plane builders use this on turbine edges, landing shafts, and mover rods. It hits hard tiredness life rules from FAA or EASA. Even lines cut air pull a touch. That’s a small but real gain at fly speeds. Shafts gain 50,000 extra cycles sometimes.

Automotive Powertrain and Transmission Systems

In car work, bearing turns, camshafts, crank pins, and piston rods get better hold under repeat loads post-treatment. Less drag aids fuel ups right away. It backs light builds with thin cuts that keep power. Transmissions run cooler, extending to 200,000 miles.

Medical Device Manufacturing Applications

Device builders put this on cut tools and plant bits. They need body-match ends free of tiny flaws for germ hold. Super even tops fight rust in body spots. They keep exact sizes for tissue joins. Implants resist wear 2-3 years more in use.

What Future Developments Are Shaping Ball Burnishing Technology?

Coming changes eye clever tools, fresh stuff, and number auto. They aim for smoother jobs that fit wide fields. But rollout might hit snags in old shops.

Advancements in Smart Tooling Design

Builders craft sensor tools that check live force or shake in runs. These bendy systems shift sets auto from fresh surface info. It’s a push to full auto end spots with twin models guessing fix before breaks. One prototype cut setup by 50%, though wiring adds cost.

Development of New Materials for Burnishing Tools

Fresh study checks mix coatings for wear hold under big pushes in heavy factory jobs. Better ceramics keep heat steady in long runs. Old steel cases might bend a bit over time. Mix stuff with metal hearts and slick outs match hard keep with easy moves over loads. These could slash wear by 60% in tests.

Evolution Toward Automation and Data-driven Optimization

Learning number sets now sift past making facts to tweak sets for next jobs auto. This trims guess setups sharp. Robot arms with bend ends do steady work on wild shapes in plane shells or bone fixes. Cloud number watch tracks output over world spots for full records in supply paths. Gains hit 20% speed, but data privacy worries linger.

FAQ

Q1: What makes ball burnishing different from polishing?
A: Polishing removes material using abrasives whereas ball burnishing compresses surface irregularities through plastic deformation without cutting action.

Q2: Can hard materials like stainless steel be processed effectively?
A: Yes, though higher forces are needed; using carbide or diamond-coated balls improves effectiveness on harder substrates.

Q3: Does lubrication always need to be applied?
A: While not mandatory for every setup, lubrication usually enhances finish quality by reducing frictional heating at contact points.

Q4: How much roughness reduction can typically be achieved?
A: Depending on initial conditions, Ra values can drop from around 1 µm down to below 0.05 µm after proper parameter tuning.

Q5: Is automation common in industrial applications?
A: Increasingly so; many CNC systems integrate automated parameter adjustment routines allowing consistent finish quality across large production batches.
