CNC machining explained for precision parts and production planning

What CNC machining covers

CNC machining removes material from metal or plastic stock under computer control to produce accurate, repeatable parts. It is not a single machine type, tolerance class, or quoting formula. A dependable machining process combines CAD data, CAM programming, cutting tools, workholding, coolant strategy, inspection, and skilled process control. It is well suited to parts with functional surfaces, threaded features, bearing seats, mating profiles, and production runs where consistency matters. It may be less efficient when a part can be cast, formed, molded, or printed closer to net shape. For related process coverage, visit the CNC machining section.

In manufacturing terminology, CNC stands for computer numerical control, a definition used by public technical references such as NIST. In machining, that control directs the movement of tools, spindles, tables, turrets, and axes so the machine can repeat programmed geometry. The process remains subtractive: chips are removed from bar, plate, billet, casting, forging, or near-net stock until the finished part meets the drawing.

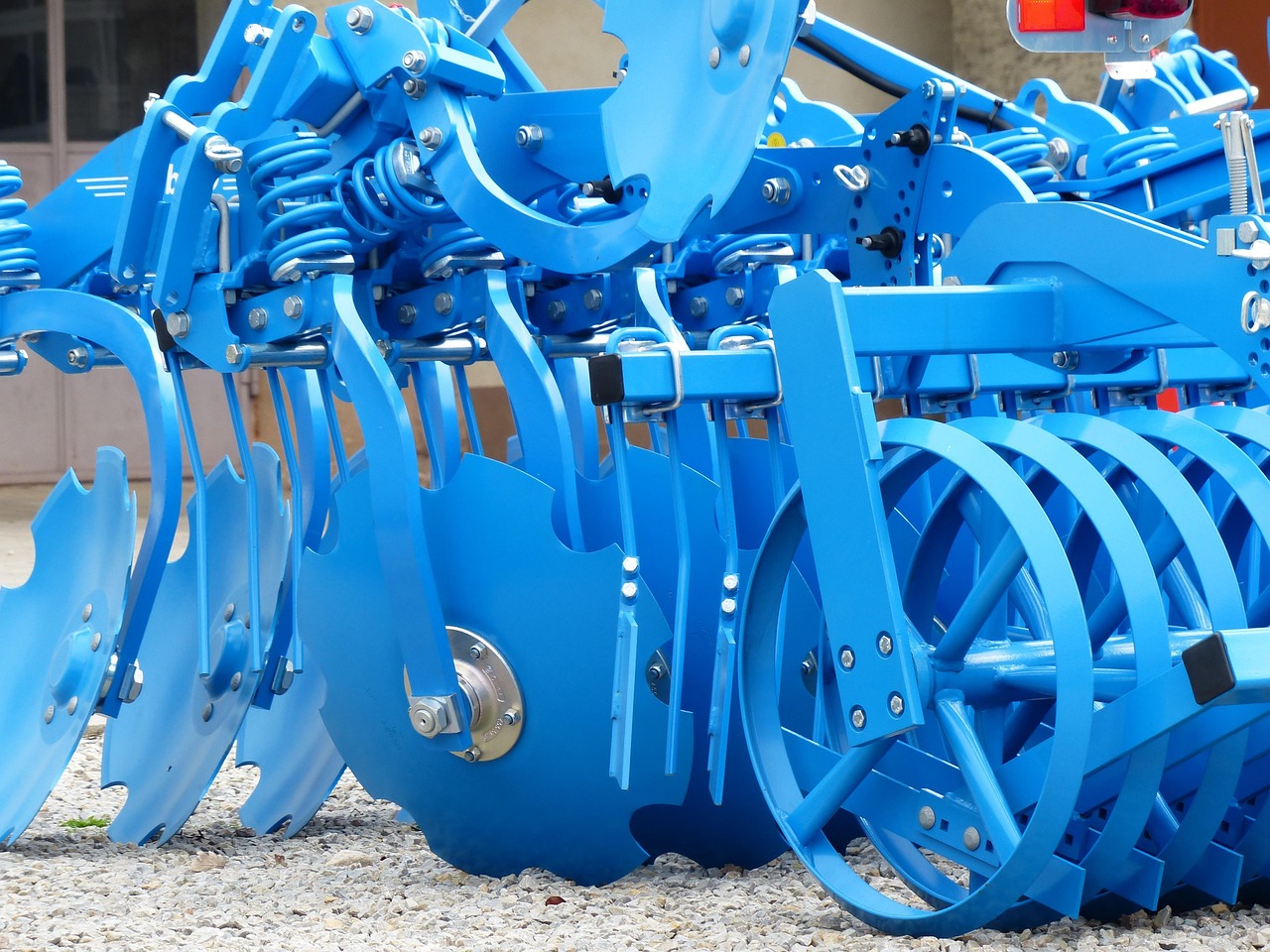

short disc harrow, harrow, agricultural machine, equipment, agriculture, farm yard, tools, machine, blue, agricultural, tillage equipment, loosen, sedimental crush, striegel, fields, floor, machining device, harrow, harrow, harrow, harrow, harrow, tools, tools

Common CNC operations include milling, turning, drilling, boring, tapping, reaming, engraving, profiling, and, in some shops, grinding or electrical discharge machining under CNC control. A three-axis machining center is often enough for prismatic brackets, plates, housings, and pockets. CNC turning is better suited to shafts, bushings, spacers, fittings, and other rotational parts. Multi-axis milling and turn-mill machines can reduce setups and improve access to complex faces, but they do not remove the need for careful fixturing, tool selection, and inspection.

The workflow from drawing to finished part

A successful CNC job usually starts before a tool touches the material. The engineering drawing or model must define the part clearly enough for the programmer, machinist, and inspector to make the same decisions. Missing datums, vague surface finish notes, and unnecessary tight tolerances create risk because they leave interpretation to the shop floor.

Stage Main decision Risk if overlooked
Design review Confirm function, datums, tolerances, material, and finish Features may be expensive, ambiguous, or impossible to inspect
Material planning Select grade, stock form, heat treatment, and allowance Warping, long lead times, or excess material removal can increase cost
CAM programming Choose toolpaths, tools, feeds, speeds, and postprocessor Collisions, poor finish, tool chatter, or wrong machine code may occur
Setup and fixturing Hold the part rigidly while preserving access to critical features Movement, distortion, or repeatability problems can affect every part
Machining Control cutting forces, tool wear, coolant, and chip evacuation Dimensions may drift and surface quality can become inconsistent
Inspection Verify critical dimensions, geometry, finish, and documentation Nonconforming parts may pass through production unnoticed

Machine code is commonly associated with G-code. ISO 6983 is widely referenced for numerical control programming formats, while real-world programs still depend on the machine tool, controller, postprocessor, work offsets, and shop-specific practices. As a result, two suppliers can start from the same CAD model and still choose different operations, cutters, setup sequences, and inspection methods.

Why manufacturers choose CNC machining

Manufacturers choose CNC machining when they need a practical balance of accuracy, material choice, repeatability, and design flexibility. Unlike casting or injection molding, machining does not require dedicated molds before the first part can be produced. Unlike many forming processes, it can create flatness, concentricity, threads, bores, pockets, sealing faces, and tight mating details directly from a digital model and drawing.

The process is especially valuable for prototypes, bridge production, spare parts, tooling components, fixtures, medical components, aerospace-style precision parts, automation hardware, fluid power components, and industrial equipment repairs. It can also scale into production when cycle time, setup strategy, palletization, tool life, and inspection planning are engineered properly.

Machine capability, however, is not the same as part capability. A machine may have strong positioning performance, but the final part is still affected by tool deflection, thermal growth, clamping pressure, residual stress in the material, burr formation, coolant delivery, and measurement uncertainty. The practical question is not simply whether a CNC machine is accurate. It is whether the full process can repeatedly produce and verify the required features at the required quantity.

Design and cost factors that matter most

Most CNC machining cost is driven by setup time, material removal, tool wear, inspection effort, finishing, scrap risk, and scheduling constraints. A design that looks simple in CAD can become expensive if it requires multiple setups, long-reach tools, thin unsupported walls, deep small-diameter holes, or tolerances applied to nonfunctional surfaces.

  • Use tight tolerances only where they protect function. A general tolerance can cover noncritical features, while bearing fits, sealing faces, and alignment datums receive specific controls.
  • Allow internal corner radii in milled pockets. Rotating cutters cannot create perfectly sharp internal corners. Smaller radii often require smaller tools, slower cutting, and more passes.
  • Keep wall thickness realistic. Thin walls can vibrate, deflect, or move after unclamping, especially in aluminum, stainless steel, and plastics.
  • Reduce unnecessary setups. Features that can be machined from one orientation are usually easier to control than features spread across many faces without clear datums.
  • Match surface finish to function. Decorative finishes, sealing surfaces, sliding contact, and fatigue-sensitive edges should be specified differently.
  • Plan threads, inserts, and deburring early. Thread depth, tool access, edge breaks, and burr control can add meaningful labor after the main cutting cycle.

Tolerance strategy deserves special attention. A drawing that asks for tight limits everywhere may appear precise, but it can hide the features that matter most. Better engineering practice is to identify the surfaces that locate, seal, rotate, slide, or carry load, then control those features with appropriate datums and inspection requirements. That approach helps suppliers quote the part realistically and helps inspectors focus on function.

CNC machining compared with other manufacturing options

CNC machining is often evaluated against additive manufacturing, casting, forging, molding, and sheet metal fabrication. None of these methods is universally better. The right choice depends on geometry, material, quantity, lead time, strength requirements, surface needs, and post-processing.

Process Where it fits well What to watch
CNC machining Precise features, strong engineering materials, prototypes, fixtures, and low-to-medium production Material waste, setup count, tool access, and machining time
Additive manufacturing Internal channels, lattice structures, rapid design iteration, and complex low-volume geometry Surface finish, anisotropy, post-machining, qualification, and material limits
Casting or forging Near-net shapes, high material utilization, and production volumes that justify tooling Tooling cost, lead time, dimensional variation, and machining of critical surfaces
Sheet metal fabrication Brackets, enclosures, panels, guards, and bent structures Bend radii, thickness limits, weld distortion, and lower suitability for thick 3D features

A common hybrid route is to cast, forge, print, or fabricate a near-net blank, then CNC machine the critical interfaces. This can reduce chip volume while preserving precise datums, threads, bores, and sealing surfaces. In many production plans, it is more realistic than treating CNC machining and alternative processes as direct competitors.

Standards, safety, and quality controls that keep parts consistent

Standards and safety requirements do not replace process knowledge, but they create common language. ISO 6983 is associated with numerical control programming formats. The ISO 230 family addresses test codes for machine tools, including tests related to positioning and circular motion. For drawings, geometric dimensioning and tolerancing systems such as ASME Y14.5 or ISO GPS help define datums, form, orientation, and location requirements more clearly than notes alone.

Safety is also part of machining performance. In the United States, OSHA places general industry machine guarding requirements in 29 CFR Part 1910 Subpart O and identifies point-of-operation hazards, rotating parts, flying chips, and sparks as issues that must be controlled. For CNC shops, those requirements connect directly to enclosures, interlocks, chip management, coolant mist, safe tool changes, lockout procedures, and operator training. See also: CNC Programming.

Quality control usually includes a combination of incoming material checks, revision control, calibrated measuring equipment, first article inspection, in-process checks, tool offset control, coordinate measuring machine inspection, surface finish checks, and final documentation. For production parts, statistical process control may be used on critical dimensions to detect drift before parts fall outside tolerance.

Trends and practical limits in modern CNC machining

Modern CNC machining is becoming more connected and automated, but the fundamentals remain mechanical. Shops increasingly use CAM simulation to reduce prove-out risk, probing to locate parts and verify features in-process, pallet systems to increase spindle utilization, and tool monitoring to reduce unexpected failures. Five-axis machining can reduce setup changes and improve access, while turn-mill equipment can complete many rotational parts without moving them between machines.

These improvements do not eliminate physical limits. Long tools still deflect. Heat still changes dimensions. Sharp tools still wear. Deep pockets still trap chips. Parts with uneven material removal can move after stress is released. Plastics may creep or melt if heat is not controlled. Stainless steels and high-temperature alloys can work harden or punish weak tooling strategies. The best results come from matching machine capability, cutter geometry, fixture rigidity, coolant strategy, and inspection method to the part, rather than assuming automation alone will solve the problem.

How to prepare a better CNC machining request

A clear request for quote saves time for both buyers and suppliers. It also reduces the chance that an attractive price is based on incomplete assumptions. A useful package should include the 3D model, a controlled 2D drawing for critical dimensions, material grade, quantity, revision level, finish requirements, inspection expectations, and any functional context the supplier is allowed to know.

  • Provide native or neutral CAD files along with a PDF drawing.
  • Identify critical-to-function dimensions and datum references.
  • State material grade, temper, heat treatment, and certification needs.
  • Separate prototype quantity from expected production demand.
  • Define surface finish, coating, passivation, anodizing, or plating requirements.
  • Call out threaded features, inserts, keyways, engraving, and deburring needs.
  • Specify whether first article reports, material certificates, or CMM reports are required.
  • Flag any flexible areas where the supplier may suggest a lower-cost alternative.

The most efficient CNC machining projects are not necessarily the ones with the most notes. They are the ones where the notes are specific, inspectable, and tied to function. When design intent is clear, the manufacturing plan can focus on repeatability instead of interpretation.

Frequently asked questions

What does CNC machining mean?

CNC machining means using computer numerical control to guide machine tools that remove material from a workpiece. The machine follows programmed motion, but the quality of the result still depends on programming, setup, tooling, material behavior, and inspection.

Is CNC machining only for metal?

No. Metals such as aluminum, steel, stainless steel, brass, copper, titanium, and nickel alloys are common, but many engineering plastics can also be machined. Plastic machining requires attention to heat, clamping pressure, chip control, and dimensional stability.

Is CNC machining better than 3D printing?

It depends on the part. CNC machining is usually strong for accurate interfaces, engineering materials, and smooth functional surfaces. 3D printing can be better for complex internal geometry, lightweight structures, and rapid shape iteration. Many industrial parts use both methods, with machining applied to critical surfaces after printing.

What mainly affects CNC machining cost?

The largest cost drivers are setup count, programming time, material price, material removal volume, cycle time, tool wear, tolerance requirements, finishing, inspection, and scrap risk. Design choices such as deep pockets, thin walls, tight tolerances, and difficult access can matter as much as part size.

How tight can CNC machining tolerances be?

There is no universal answer because tolerance depends on machine condition, part geometry, material, temperature, fixturing, cutting strategy, and measurement method. A realistic tolerance should be linked to part function and confirmed with the supplier before release.
