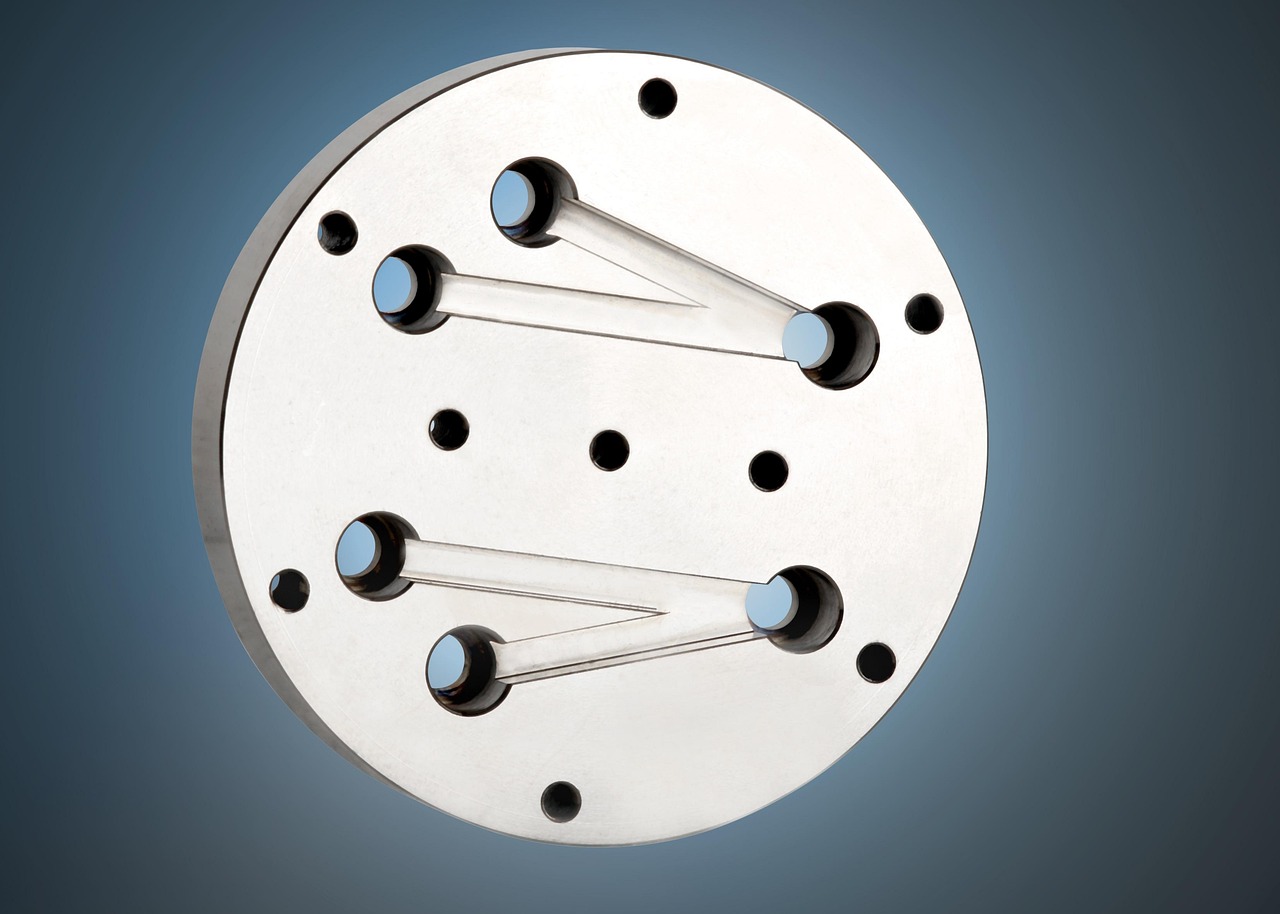

How Can CNC VMC Programming Cut Cycle Time Without Risking Part Quality?

What Makes CNC VMC Programming Different from Basic CNC Milling?

CNC VMC programming is more than entering tool moves into a control. On a vertical machining center, the programmer has to think about spindle direction, fixture height, tool reach, chip flow, coolant, work offsets, and the way that control behaves in daily use. A useful program removes metal at a steady rate, protects the spindle and toolholder, and still gives the operator room to check the job during setup.

Vertical Spindle and Three Axis Motion

A VMC has a vertical spindle, so gravity changes how chips and coolant behave. Aluminum pockets can pack chips quickly, and steel slots can put heat into the tool when coolant does not reach the cut. In most 3-axis work, X and Y make the shape while Z controls depth. It looks simple on the drawing, but a 0.5 mm Z error can scrap a mold insert or break a carbide drill in the first minute.

Machine Coordinate System and Work Offsets

You need a clear plan for machine zero, part zero, and safe clearance before the program runs. G54 is often the first work offset, while production fixtures may use G55, G56, or more offsets for several parts in one setup. Choose a datum the operator can probe or touch off without guessing. A corner, bore center, or fixture stop is usually safer than a soft edge that changes after roughing.

G Code, M Code, and Controller Habits

ISO 6983-1:2009 covers program format and address words for numerical control, and ISO notes that this edition was confirmed in 2025. That still matters because G code keeps a shared structure, even when Fanuc, Haas, Siemens, Heidenhain, and Mitsubishi controls handle some details in their own way. Modal commands, canned cycles, tool length calls, and arc formats should follow the post processor and the control manual. Shop talk can help, but it should not replace the manual. (iso.org)

How Do You Plan a VMC Program Before Posting Code?

Good programming starts before CAM. A few minutes on the drawing can save an hour at the machine. The question is not only whether the tool can cut the shape. You also need to know if the clamp is in the way, if the vise jaw can hold the stock, and if inspection can measure the feature after machining.

Drawing Review and Datum Choice

Start with tolerance, surface finish, material, and datum callouts. If a bore controls the whole part, rough it early, then finish it after stress has moved. If a profile has a tight true position, keep the same datum through roughing and finishing. For common job-shop parts, a note like “Z zero on top of finished face” can prevent many setup mistakes.

Stock, Fixturing, and Tool Access

Program the real stock size, not a perfect CAD block. Saw-cut bars may come in 2 mm oversize on one side and barely clean on another. Leave enough material for the vise to grip, and check whether short tools can reach the bottom features. Long tools look convenient in CAM, but on the machine they chatter, bend, and sometimes make that sharp sound every machinist knows.

Operation Order That Saves Setups

Cut the stable features first. Face the part, rough large pockets, drill holes that help with clamping, and finish critical faces after the part has released some stress. If the part needs a second operation, add locating holes, soft jaw references, or witness surfaces in the first setup. Good CNC VMC programming often removes small decisions from the machine side, and that makes the job easier to repeat.

Which G Code Choices Matter Most in Daily VMC Work?

Daily VMC work depends on code that is easy to read and easy to restart. Special toolpaths can help, but they only pay off after the program has safe starts, clear tool calls, correct compensation, and clean recovery points. A program that an operator can restart safely after a tool change is worth more than a clever path with no notes.

Safe Start Blocks and Modal Control

A safe start line should cancel old modes and set the modes the program expects. Common examples include G17 for XY plane, G40 to cancel cutter compensation, G49 to cancel tool length compensation, G80 to cancel canned cycles, and G90 for absolute programming. The exact line depends on the control. The idea is simple: do not let yesterday’s modal state turn into today’s crash.

Canned Cycles for Drilling and Tapping

Canned cycles keep drilling code shorter and easier to check. G81 may fit simple drilling, G83 helps with peck drilling deep holes, and rigid tapping cycles need the right spindle synchronization and tap holder setup. Always check the retract level before running the cycle. A low R plane saves time, but it only makes sense when clamps, bosses, and chips stay below that plane.

Cutter Compensation for Real Shop Adjustments

G41 and G42 let the operator adjust tool radius without reposting the file. This is useful for finishing walls, wear offsets, and small batch corrections. Compensation still needs lead-in and lead-out space. If the tool feeds straight into a corner with no room to turn comp on, the control may alarm or cut on the wrong side of the line.

How Should You Pick Speeds, Feeds, and Toolpaths?

Speeds and feeds should come from tool data, material, machine power, holder rigidity, and chip condition. They should not come from a random number copied from an old job. Good numbers make a chip that carries heat away from the cut. Poor numbers rub the edge, make dust instead of chips, and ruin a new end mill early.

Cutting Speed and Feed per Tooth Math

Sandvik Coromant’s metric milling formula sheet lists spindle speed as cutting speed times 1000 divided by pi times cutter diameter. It also lists table feed as feed per tooth times spindle speed times the number of effective teeth. Using those formulas, a 10 mm cutter at 180 m/min runs about 5,730 rpm. With four effective teeth and 0.04 mm per tooth, table feed is about 917 mm/min. These are starting numbers, not fixed answers. Holder runout, stick-out, machine age, and coolant can change the final setting. (cdn.sandvik.coromant.com)

Roughing Paths That Control Tool Load

Many roughing programs use lighter radial engagement and deeper axial depth to keep chip thickness more even. Trochoidal or adaptive paths can work well in pockets when tool engagement stays under control. On a small VMC with limited horsepower, a full-width slot at a high feed can stall the cut. A better path may look slower in CAM, but it can finish sooner because the tool lasts and the operator does not keep stopping the machine.

Finishing Passes for Size and Surface

Leave a set amount for finishing, such as 0.2 mm on a light aluminum wall or more on steel roughing, depending on rigidity and tolerance. Spring passes can help thin walls, but they can waste time when the first finish pass already cleans the surface. Check the part before adding more cutting time. CNC machining has many small decisions like this, and they show up in size, surface, and cycle time.

How Can Simulation and Prove Out Prevent Expensive Mistakes?

Simulation is not just something to show in a meeting. It helps catch wrong tools, missing clamps, bad retracts, gouges, and leftover stock before the machine is at risk. A VMC program should pass CAM simulation first. After that, it still needs a machine-level prove out with the operator in control.

Backplot, Solid Simulation, and Collision Checks

Backplot shows tool motion. Solid simulation shows material removal. Machine simulation checks the spindle, holder, table, fixture, and travel limits. Use all three when the job has long holders, tight clamps, rotary fixtures, or deep cavities. NIST machining research has shown that thermal loads from motors, part processing, and room temperature changes can drive machine tool deformation. For that reason, simulation should work with real inspection, not replace it. (nist.gov) See also: CNC Machining.

Single Block, Dry Run, and Feed Override

On the first run, use single block, optional stop, distance-to-go, and feed override. Keep rapid moves visible and slow at the start. Many shops air cut above the part, then run with a raised Z offset, and only then cut real material. It may feel slow, but it costs less than a damaged probe, spindle nose, or custom vise jaw.

First Article Inspection and Program Notes

The first article shows whether the program, setup, tool, and machine are working together. Record the measured size, offset changes, tool wear, and any alarm. If a 12 mm reamer cuts 0.015 mm oversize after warm-up, write it down. The next programmer or operator should not have to find the same problem again late on a Friday afternoon.

What Shop Data Should Feed Back into Your Next Program?

A VMC program improves when the shop keeps real results and uses them. Cycle time, scrap causes, tool wear, and inspection trends should go back into templates and process notes. This does not have to be a large software project. For many small and mid-size shops, a setup sheet with clear notes is enough.

Cycle Time and Tool Life Records

Record planned cycle time and actual cycle time. If CAM predicts 18 minutes and the machine takes 24 minutes, find out why. The control may be slowing down small line segments, or the operator may have reduced feed because the tool squealed. Tool life matters too. A rougher that runs 40 parts at 80 percent feed can be cheaper than one that runs fast for 12 parts and chips without warning.

Scrap Causes and Offset History

Scrap notes should name the cause, not only the result. “Hole out of position” is less useful than “G54 picked from rough edge after Op 1 saw cleanup.” Offset history also helps. If every run needs the same cutter wear change, the nominal CAM value or tool diameter entry may be wrong.

Standard Templates for Repeat Jobs

Templates reduce simple mistakes. Keep standard blocks for safe start, tool call, probing, coolant, drilling cycles, and end-of-program moves. Use clear comments for tool number, diameter, corner radius, stick-out, and holder type. Comments should be short, but they should not be so cryptic that the operator has to open the CAM file to understand the toolpath.

How Do Safety and Standards Shape Better VMC Programs?

Safety is part of programming because code moves a real machine. A safe program respects guards, doors, spindle rotation, coolant splash, tool change clearance, and lockout rules. Production pressure is real, but it does not make a poor retract or a removed guard acceptable.

ISO Program Format Basics

Standards help people and machines use a common programming language. ISO 6983 does not remove the need to check each control, but it gives a base for address words and motion format. This matters in export manufacturing. A supplier may receive code, setup sheets, or process ideas from customers using different controllers and CAD/CAM systems.

Guarding, Lockout, and Operator Habits

OSHA’s machine guarding guidance states that fixed-location machines must be anchored, eye and face protection is needed when flying particles create hazards, and lockout/tagout rules require energy control procedures, training, and periodic inspections before servicing or maintenance. CDC/NIOSH also notes in 2026 guidance that hazardous energy can be electrical, mechanical, hydraulic, pneumatic, chemical, thermal, or other forms. These points apply directly to CNC work. A paused program should never be treated as a safe machine for chip clearing or fixture repair. (osha.gov) (cdc.gov)

A Simple Checklist Before Cycle Start

Before cycle start, check work offset, tool length, tool diameter, spindle direction, coolant, clamp clearance, part orientation, retract plane, and the active program name. Then check the plain items again. A wrong revision with the right file name can still ruin a batch. The habit may take 60 seconds, but it can save a shift.

• Confirm part zero and active offset.
• Match tool numbers with the setup sheet.
• Check holder length against the deepest Z move.
• Run simulation or backplot for every new revision.
• Use single block for the first toolpath on new jobs.

FAQ

Q1: What Is CNC VMC Programming? A: It is the work of creating and proving CNC code for a vertical machining center, including toolpaths, work offsets, speeds, feeds, tool changes, coolant commands, and safety moves.

Q2: Is Hand Programming Still Useful for VMC Work? A: Yes. CAM is common for 3D surfaces and complex parts, but hand programming is still useful for drilling, facing, simple pockets, fixture cleanup, and quick repair work.

Q3: Which Work Offset Should You Use First? A: G54 is often the first work offset, but the best choice depends on your fixture plan, machine control, and shop standard. Keep it clear on the setup sheet.

Q4: How Do You Reduce Cycle Time Without Hurting Quality? A: Start with stable fixturing, correct tool data, safe rapid planes, fewer tool changes, steady roughing engagement, and measured feedback from real parts.

Q5: Should Every VMC Program Be Simulated? A: Yes, at least backplot every new or edited program. Use full machine simulation when holders, clamps, long tools, or tight clearances create collision risk.
