EDM machining process explained for precision manufacturing

What the EDM machining process does

The EDM machining process is a non-contact, thermal material-removal method used on electrically conductive workpieces. Instead of cutting with a sharp tool, EDM uses controlled electrical pulses between an electrode and the workpiece across a small gap filled with dielectric fluid. Each discharge melts or vaporizes a tiny amount of material, while the fluid cools the gap and flushes away debris.

EDM is not a general replacement for milling, turning, or drilling. It becomes valuable when hardness, geometry, delicate features, deep holes, tight internal corners, or low mechanical force make conventional cutting difficult or risky. In precision manufacturing, the main process families are wire EDM, sinker EDM, and EDM hole drilling.

For readers comparing EDM with other machining processes, the core trade-off is straightforward: EDM replaces mechanical cutting force with controlled spark erosion. That creates important advantages, but it also brings limits related to speed, surface integrity, flushing, electrode wear, and the need for conductive materials.

How EDM removes material

Manufacturing education and standards references, including SME training material, Open University engineering resources, NIST publications, and ISO wire-EDM process descriptions, consistently describe EDM as a process based on electrical discharges between a tool electrode and a workpiece in a dielectric medium. The electrode and workpiece do not touch during normal cutting. A servo system maintains a narrow spark gap so discharges occur in a controlled zone rather than becoming uncontrolled arcing.

A typical EDM cycle can be understood in five steps:

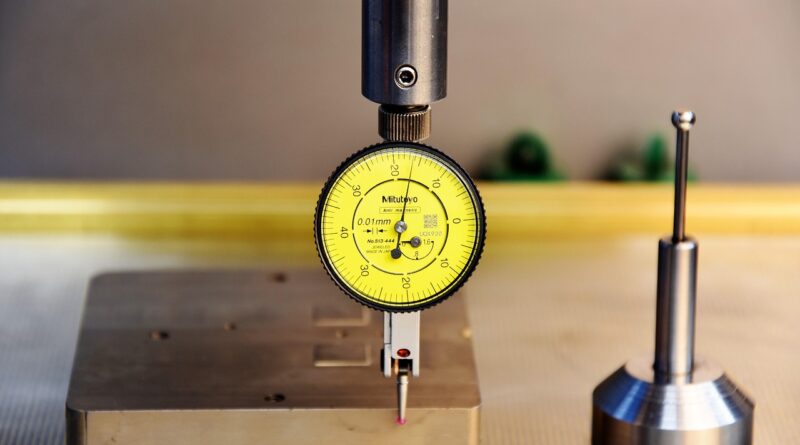

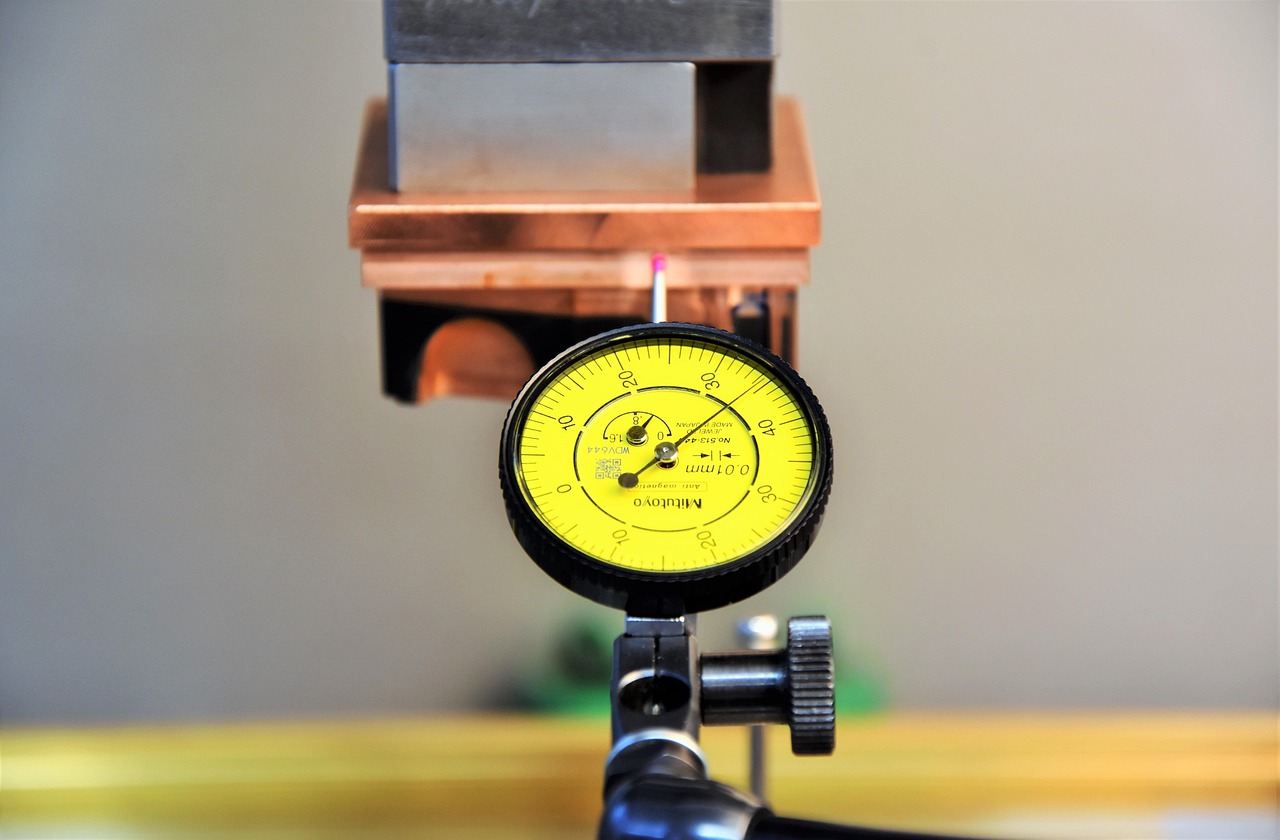

1. Setup and alignment. The workpiece is clamped, the electrode or wire path is referenced, and the machine establishes the programmed gap and datum system.
2. Dielectric isolation. The gap is flooded or immersed in dielectric fluid. In many wire EDM machines this is deionized water; in many sinker EDM machines it is a hydrocarbon or synthetic dielectric fluid.
3. Pulse discharge. The power supply sends short electrical pulses. When the dielectric breaks down locally, a spark channel forms between the electrode and workpiece.
4. Thermal erosion. Heat from the discharge melts and vaporizes small volumes of material from the workpiece and, to a lesser degree, from the electrode.
5. Off-time and flushing. The pulse stops, the dielectric regains insulating strength, and debris is flushed from the gap before the next discharge.

This repeated cycle builds the final shape from many microscopic craters. Because the tool does not mechanically shear the metal, EDM can machine hardened tool steels, carbides, nickel alloys, titanium alloys, and other difficult conductive materials after heat treatment. It is still a thermal process, however. Aggressive settings can leave a recast layer, heat-affected surface changes, microcracking in sensitive materials, or higher electrode wear.

Critical parts may require finishing passes, polishing, stress relief, or inspection requirements defined by customer or industry specifications. For aerospace and other controlled applications, specifications such as SAE AMS2549 are relevant because they address processing and acceptance requirements for EDM on manufactured parts.

Main EDM process types

EDM is often discussed as one process, but the practical choice depends on whether the feature is a through-cut, a blind cavity, or a small deep hole. The three common process families solve different manufacturing problems.

EDM type	Tooling method	Common dielectric	Best suited for	Main limitation
Wire EDM	Continuously fed wire electrode	Deionized water in most systems	Through profiles, punches, dies, gears, slots, extrusion tools, and precise 2D contours	Cannot create a blind cavity; internal cuts usually need a start hole
Sinker EDM	Shaped graphite, copper, or copper-tungsten electrode	Oil-based or synthetic dielectric fluid in many systems	Blind cavities, ribs, mold details, sharp internal features, and complex 3D impressions	Requires electrode design and manufacture; electrode wear must be managed
EDM hole drilling	Small rotating tube electrode with fluid through the tool	Water-based or EDM-specific dielectric, depending on machine	Starter holes for wire EDM, cooling holes, broken tap removal, and small deep holes	Geometry is hole-focused; diameter, straightness, and taper depend on setup and parameters

Wire EDM

Wire EDM uses a thin moving wire as the electrode. The wire is continuously fed, so a fresh electrode surface is always entering the cut. The workpiece and wire are separated by a controlled gap, and CNC axes guide the wire path through the material. Because the wire must pass through the full thickness, wire EDM is mainly used for through-cut features. For an internal opening, the shop normally drills or EDM-drills a start hole, threads the wire through it, and then cuts the programmed profile.

Wire EDM is common in tool and die work, high-precision plates, punches, medical components, aerospace details, and hardened parts where conventional tool wear would be high. Multiple skim passes can improve size control and surface finish, but they add cycle time.

Sinker EDM

Sinker EDM, also called ram EDM or die-sinking EDM, uses a shaped electrode that is fed into the workpiece. The final cavity reflects the electrode shape, the spark gap, and any programmed orbiting motion. This process is well suited to blind forms that wire cannot cut, including mold cavities, narrow ribs, deep pockets, internal corners, logos, and forms with no through path.

The trade-off is preparation. Electrodes must be designed, manufactured, measured, and sometimes replaced as they wear. Roughing electrodes remove material faster, while finishing electrodes are used to improve accuracy and surface quality. For complex mold work, electrode strategy can be as important as the EDM burn itself.

EDM hole drilling

EDM hole drilling uses a small tubular electrode, often with dielectric fluid delivered through the tube, to erode holes in hard conductive materials. It is frequently used to create wire EDM start holes, remove broken taps or drills, and produce small deep holes where a conventional drill would deflect, break, or struggle with chip evacuation. It is not automatically the fastest option for simple holes in soft material, but it can solve access and hardness problems that mechanical drilling may not handle well.

Where EDM adds the most manufacturing value

EDM is most valuable when conventional machining becomes difficult because of hardness, geometry, tool access, or part fragility. A hardened insert, carbide wear part, thin precision profile, or deep narrow rib may be possible to machine mechanically, but tool wear, burrs, deflection, vibration, or distortion can make the job unstable. EDM avoids cutting pressure and can maintain delicate shapes because the electrode does not push a cutting edge through the workpiece.

Common high-value EDM applications include:

• Hardened tool steel punches, dies, and trim details after heat treatment.
• Injection mold and die-casting cavities with sharp internal details or deep ribs.
• Carbide, nickel alloy, titanium alloy, and other conductive difficult-to-cut materials.
• Precision through profiles where wire EDM can hold shape without tool pressure.
• Starter holes, cooling holes, and broken tool removal in hardened components.
• Small-lot or repair work where making a conventional form tool would be impractical.

EDM is also useful as a finishing process after rough milling. A shop may remove bulk stock quickly with CNC milling, heat treat the part, then use EDM only for hard-to-reach details, final slots, internal radii, or cavity features. That hybrid route often balances speed, accuracy, and cost better than relying on EDM for all stock removal.

Process variables that control cost and quality

EDM results depend on interacting variables rather than one universal speed or tolerance number. Machine capability, material condition, electrode design, flushing, workholding, thermal stability, and inspection practice all influence the final part. See also: CNC Machining.

Pulse energy and duty cycle

Higher current and longer pulse-on time usually increase material removal rate, but they can also create a rougher surface, deeper recast layer, more heat input, and more electrode wear. Finishing passes use lower-energy discharges to refine the surface and bring the feature closer to final size. Pulse-off time matters because the dielectric must deionize and debris must clear before the next discharge. If the gap has not recovered, arcing and short circuits can damage the surface or slow the job.

Electrode and wire behavior

In sinker EDM, electrode material and geometry affect wear, detail retention, surface finish, and cost. Graphite is widely used for many sinker applications because it machines well and can handle heat, while copper and copper-tungsten are used where their properties better fit the burn or detail requirements. In wire EDM, wire diameter, coating, tension, feed rate, and machine threading capability influence corner radius, straightness, wire breakage risk, and productivity.

Flushing and debris removal

Flushing is not a secondary detail; it is central to EDM stability. Debris in the spark gap changes electrical conditions and can lead to unstable discharges, taper, short circuits, or poor surface finish. Too little flushing lets debris accumulate. Too much flushing, or flushing aimed in the wrong direction, can deflect a small electrode or wire, especially in deep and narrow features. Good EDM planning includes fluid delivery, filtration, dielectric condition, and access paths for debris to leave the cut.

Surface integrity

Because EDM uses heat, the surface can differ from mechanically machined metal. Depending on material and settings, the surface may include a recast layer, microscopic cracks, localized hardness changes, or deposits from the electrode or dielectric. For general tooling, these effects may be acceptable after finishing or polishing. For fatigue-critical, medical, or aerospace parts, the drawing or purchase specification should state acceptable surface condition, inspection method, and whether post-EDM removal is required.

Design and quoting checklist for EDM parts

A clear drawing and process plan reduce EDM cost more effectively than choosing a process by keyword alone. Before sending an EDM job for quoting or scheduling, engineers and buyers should define the real constraints of the feature.

• Material and condition: State alloy, hardness, heat-treatment condition, and whether the part is already finished on other surfaces.
• Feature type: Identify whether the feature is a through profile, blind cavity, small hole, taper cut, slot, rib, or repair operation.
• Access: For wire EDM, define start holes, open edges, threading access, slug retention, and any no-cut zones.
• Tolerances and datums: Specify functional datums, not only nominal geometry. EDM accuracy depends on referencing and inspection as much as on machine capability.
• Surface finish and surface integrity: State surface roughness expectations, recast layer limits, polishing needs, or customer specifications.
• Corner radii: Do not assume a perfectly sharp internal corner. Wire diameter, electrode geometry, and spark gap create a minimum practical radius.
• Quantity and repeatability: For sinker EDM, electrode cost may be justified for repeat work but may dominate a one-off prototype.
• Pre-machining strategy: Remove bulk material mechanically where possible, leaving EDM for geometry that truly needs spark erosion.

The most common design mistake is treating EDM as magic rather than as a controlled process with a physical gap, debris flow, electrode wear, and thermal effects. EDM can create shapes that are difficult by other methods, but it still needs realistic access, stable fixturing, and measurable requirements.

Limitations and safety considerations

EDM has several practical limitations. It requires an electrically conductive workpiece for conventional operation. It is usually slower than milling or drilling for simple bulk removal. It may need start holes, custom electrodes, multiple skim passes, or polishing after cutting. It can also create a thermally affected surface that must be evaluated for critical parts.

Safety and maintenance are also part of the process. EDM machines use electrical energy, dielectric fluid, pumps, filters, and sometimes oil-based fluids. Industry safety guidance and machine manuals emphasize fluid level control, fire-risk management, ventilation, filtration, interlocks, and proper handling of dielectric fluids. Wire EDM water systems also require conductivity and cleanliness control; contaminated or poorly controlled water can affect cutting stability, corrosion behavior, and wire performance. Operators should follow the machine builder’s manual, shop safety procedures, and the safety data sheet for the specific dielectric fluid in use.

Frequently asked questions

Is EDM only for metal?

EDM is for electrically conductive materials. That includes many metals and some conductive or semi-conductive materials. Conventional EDM is not suitable for ordinary plastics or fully nonconductive ceramics unless a specialized assisted process is used.

Does EDM touch the part?

No. In normal operation, the electrode and workpiece are separated by a controlled spark gap. The machine uses servo control to maintain that gap while electrical discharges remove material.

When should wire EDM be chosen over sinker EDM?

Choose wire EDM for precise through-cuts and 2D profiles that the wire can pass through. Choose sinker EDM for blind cavities, mold details, deep ribs, and forms that do not have a through path.

Does EDM leave burrs?

EDM generally avoids the mechanical burrs created by cutting tools because it erodes rather than shears the material. However, edge condition, recast layer, and small debris-related artifacts can still require finishing depending on the drawing requirement.

Why can EDM be expensive?

EDM cost comes from machine time, slow material removal, electrode manufacturing, setup, flushing control, skim passes, inspection, and post-processing. It is most economical when those costs solve a problem that conventional machining cannot handle reliably.
