What Is Shaft Machining and How Can You Get Reliable Precision Parts?
What Is Shaft Machining?
Shaft machining covers cutting, turning, drilling, grinding, and finishing round parts that carry motion, load, or position in rotating assemblies. If you buy motor shafts, pump shafts, gear shafts, spindle shafts, or drive pins, this work is part of the wider group of machining processes, but shafts bring their own trouble points. On paper, a shaft may look like a long cylinder with a few steps and grooves. In the workshop, a small miss on runout, surface finish, or bearing fit can lead to noise, heat, and early failure.

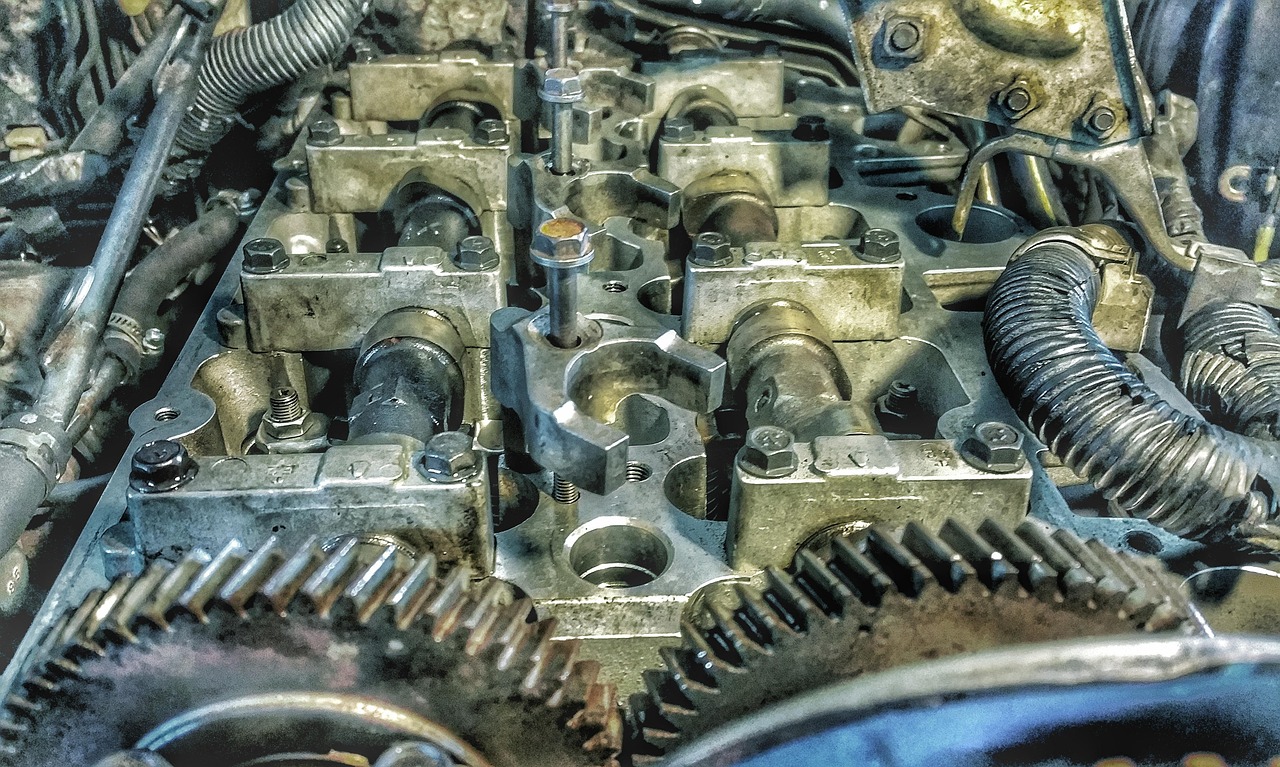

Rotating Load Parts
Most shafts have a simple job: they rotate while carrying torque, radial load, axial load, or a mix of them. That simple job still makes the part easy to get wrong. A conveyor roller shaft may accept a looser tolerance than a servo motor shaft, while a pump shaft may need corrosion resistance near the seal area. A spindle shaft often needs close concentricity because the tool or workpiece will follow any error in the shaft.
Typical Shaft Features
Common features include bearing journals, keyways, circlip grooves, threads, splines, flats, cross holes, center holes, shoulders, and seal lands. Each one affects how the shaft is held, cut, and checked. A deep keyway can release stress and bend a slim shaft after machining. A small undercut near a shoulder can protect a grinding wheel, but the wrong radius can also raise stress. These small points often decide whether the shaft runs smoothly or causes trouble during assembly.
Buyer Ready Drawings
A useful drawing should list material grade, heat treatment, critical diameters, tolerance class, surface roughness, runout, straightness, hardness, plating or coating, and inspection points. ISO 286-1:2010 defines the ISO code system for tolerances on linear sizes, including cylindrical features and the terms used for basic hole and basic shaft fit systems. (iso.org) For a buyer, a note such as h6, g6, or k6 is not just a small drawing detail. It tells the machine shop how the shaft needs to fit with a bearing, pulley, coupling, or housing.
Why Does Shaft Machining Need Tight Control?
A shaft is not checked by diameter only. It has to run true, match the parts around it, and handle the load in service. During shaft machining, the shop needs to manage cutting force, heat, clamping pressure, tool wear, and the way the part is measured. Long thin parts make this harder because they can bend under the tool and spring back after the cut.
Concentricity and Runout
Runout is one of the common reasons shafts fail inspection. If a bearing journal is not concentric with a gear seat, the final assembly may vibrate even when each diameter is within size. For precision shafts, datum rules should be clear from the start. Do not only write “keep good concentricity.” Put the datum on the drawing and give the runout value for each critical journal. It prevents rework, long email chains, and some uncomfortable calls close to the ship date.
Deflection During Cutting
Slender shafts bend under tool pressure, especially when the overhang is long. A machinist may use a tailstock, steady rest, follower rest, smaller depth of cut, sharper insert, or several light passes. For example, a 12 mm diameter shaft with a 300 mm length is far more likely to chatter than a short 25 mm pin. The length-to-diameter ratio matters, so it should be considered when the process is planned and when the quote is reviewed.
Heat and Stress Release
Heat treatment can improve wear resistance and strength, but it can also move the part. A common route is rough turning before heat treatment, then finish turning or grinding after heat treatment, especially for bearing journals and seal surfaces. If a shaft is welded, forged, or heavily cold drawn, stress relief may be needed before final machining. The point is to remove metal in an order that does not let the shaft change shape after it leaves the machine.
Which Shaft Machining Methods Work Best?
The right process depends on shaft size, order quantity, material, tolerance, and the mix of features. A short stainless shaft with threads may not follow the same route as a hardened transmission shaft with ground journals. In sourcing work, the lowest unit price is not always the lowest total cost when scrap risk and inspection time are high.
CNC Turning for Main Profiles
CNC turning is usually the first process for shaft work. It makes outside diameters, shoulders, tapers, grooves, chamfers, and many thread forms. Bar-fed turning centers are suitable for small and medium shafts in volume production. Larger shafts may be machined between centers on a CNC lathe. Turning can hold good accuracy, but very tight bearing fits or fine finishes may still need grinding after turning.
Milling, Drilling, and Slotting
Cross holes, flats, keyways, spline starts, and pockets often need milling or drilling. A mill-turn machine can cut many of these features in one setup, which helps reduce handling error. For a shaft with a keyway and two bearing journals, keeping the work in one or two setups can improve alignment. If the part goes through too many machines, every chucking step adds another chance for mismatch.
Grinding and Superfinishing
Grinding is often used when the drawing calls for tight size, low runout, or a smoother surface on bearing and seal areas. Cylindrical grinding can bring hardened shafts to final size after heat treatment. Superfinishing or polishing may be used on hydraulic rods, seal lands, or spindle parts. Be careful with requests for “mirror finish,” though. A seal land needs the correct roughness and lay, not only a shiny surface.
How Should You Choose Materials and Tolerances?
Material choice affects cutting speed, tool life, heat treatment, straightness, corrosion behavior, and final cost. Tolerance choice affects nearly every process step after that. If a non-critical spacer diameter is controlled like a bearing seat, you pay for extra time without real benefit. If a bearing seat is too loose, the assembly can fail even if the shaft looks clean.
Carbon Steel and Alloy Steel
Carbon steels such as 1045 are used often for general shafts because they machine well and give practical strength. Alloy steels such as 4140 or 42CrMo4 are chosen when the shaft needs higher strength, better fatigue resistance, or heat-treated hardness. For heavy torque shafts, material certificate control is important. Ask for chemistry and mechanical property records when the part is tied to safety or high downtime cost.
Stainless Steel and Nonferrous Options
Stainless steel is used for food equipment, pumps, marine hardware, and medical devices. It resists corrosion, but some grades can work harden during cutting, especially austenitic grades. Aluminum shafts are light and easy to machine, though wear resistance may be limited unless the surface is coated or hard anodized. Brass and bronze are common in bushings, small instrument shafts, and low-friction parts.
Fit Classes and Real Assembly
Tolerance should match the way the part is assembled. A bearing inner ring may need an interference fit on a rotating shaft, while a pulley may need a transition fit with a key. A sliding shaft needs clearance. ISO 286-2:2010 gives standard tolerance classes and limit deviations for holes and shafts based on the ISO 286 system. (iso.org) During drawing review, ask a basic question for each diameter: what does this surface touch, and what happens if the fit is too tight or too loose? See also: CNC Machining.
How Can You Reduce Cost Without Hurting Quality?
Shaft cost is not only material and cutting time. Setup, inspection, fixture design, tool wear, heat treatment, straightening, packaging, and communication all affect the final price. The NIST Manufacturing Cost Guide describes manufacturing cost analysis through inputs such as machine rate, machining time, setup time, operation time, and investment factors. (nist.gov) This is a sensible way to read a shaft quote because two similar shafts can carry very different setup and inspection loads.
Design for Fewer Setups
Place critical features so they can be machined from the same datum when possible. If a shaft has tight runout between two journals, the shop may prefer turning between centers and then grinding between centers. If a cross hole does not need a strict angular position, avoid adding that callout. One extra orientation requirement can force indexing, probing, or a special fixture.
Smart Tolerance Placement
Use tight tolerances only where they are needed. A bearing seat may need micron-level control, while an exposed non-contact diameter can often use a wider tolerance. The same rule applies to roughness. A seal surface may need a controlled finish, while a relief groove may not. This is not cutting quality; it is putting machining time where it helps the assembly.
Stable Batch Planning
Small batches cost more per piece because setup time is spread over fewer parts. Larger batches can make better use of bar feeders, preset tools, in-process gauging, and dedicated fixtures. For repeat orders, keep revision control and the inspection plan stable. A small drawing change, even a simple chamfer update, can change the quote if it affects tooling or inspection.
What Should You Check Before Approving a Shaft Supplier?
A capable supplier should discuss the process route, inspection method, and risk areas, not just the price. Shaft machining needs good machines, but it also needs steady shop habits. Since rotating parts can create safety risks during production, OSHA 29 CFR 1910.212 requires guarding against hazards such as point of operation, ingoing nip points, rotating parts, flying chips, and sparks in machine areas. (osha.gov) Safety discipline is not separate from quality. It often shows how seriously a shop handles fixtures, chips, coolant, and daily checks.
Inspection Tools and Reports
Ask which tools will be used for each critical feature. Micrometers, air gauges, dial indicators, V-blocks, roundness testers, CMMs, hardness testers, and surface roughness meters may all be involved. For export orders, request a first article inspection report and a final inspection report. If the shaft has bearing journals, ask for actual measured values, not only “OK.”
Process Route Transparency
A practical route may include sawing, center drilling, rough turning, stress relief, finish turning, heat treatment, grinding, polishing, inspection, rust prevention, and packing. Not every shaft needs all of these steps, but the supplier should still explain the sequence they plan to use. The U.S. Bureau of Labor Statistics notes that machinists and tool and die makers work in machine shops and factories, and its 2024 wage data reflects the skilled labor behind this kind of work. (bls.gov) Skilled people still matter, even when the machines are CNC.
Packing and Rust Prevention
Many shafts are damaged after production, not during cutting. Thin journals get dinged in transport, ground surfaces rust under weak packaging, and threads collect dents when parts touch inside a carton. Use VCI paper, oil, plastic sleeves, caps, dividers, or custom trays for high-value shafts. This work is not exciting, but solid packaging can prevent a costly assembly line stop.
FAQ
Q1: What Is the Most Common Process for Shaft Machining? A: CNC turning is the most common starting process because it forms the main round profile, shoulders, grooves, chamfers, and threads. Grinding, milling, drilling, or polishing may follow when the shaft needs tighter size, cross holes, keyways, or better surface finish.
Q2: How Tight Should a Shaft Tolerance Be? A: The tolerance should match the mating part and function. Bearing seats, seal lands, and gear locations often need tighter control. Non-contact areas can usually use wider tolerances to reduce cost and lead time.
Q3: Why Do Long Shafts Bend During Machining? A: Long shafts bend because tool pressure, clamping force, heat, and material stress act on a slender shape. Tailstock support, steady rests, light cuts, stress relief, and grinding between centers can reduce the problem.
Q4: Is Grinding Always Needed for Precision Shafts? A: No. CNC turning can be enough for many parts. Grinding is usually chosen for hardened shafts, tight bearing fits, low runout, or fine surface finish requirements.
Q5: What Should You Send for an Accurate Shaft Quote? A: Send a complete drawing, material grade, tolerance requirements, surface finish notes, heat treatment needs, coating details, quantity, inspection expectations, and target application. A sample or old inspection report also helps when the part is being replaced or improved.
