How to choose CNC cutting tools for machining accuracy, tool life and cost

What CNC cutting tools need to do in a modern shop

CNC cutting tools should be chosen for the feature they have to produce: accurate, repeatable and at an acceptable cost per part. Purchase price alone is a weak measure. The tool also has to suit the workpiece material, operation, machine spindle, holder, coolant strategy and tolerance target. In many shops, the best result comes from balancing predictable tool life with stable chip evacuation, low runout and a cutting edge that can survive the heat and load of the actual cut.

The practical question is not simply which tool is sharpest. It is which tool system can remove material at the planned rate, keep size under control and fail in a predictable way. This guide focuses on that selection process for milling, drilling, turning and holemaking in CNC machining.

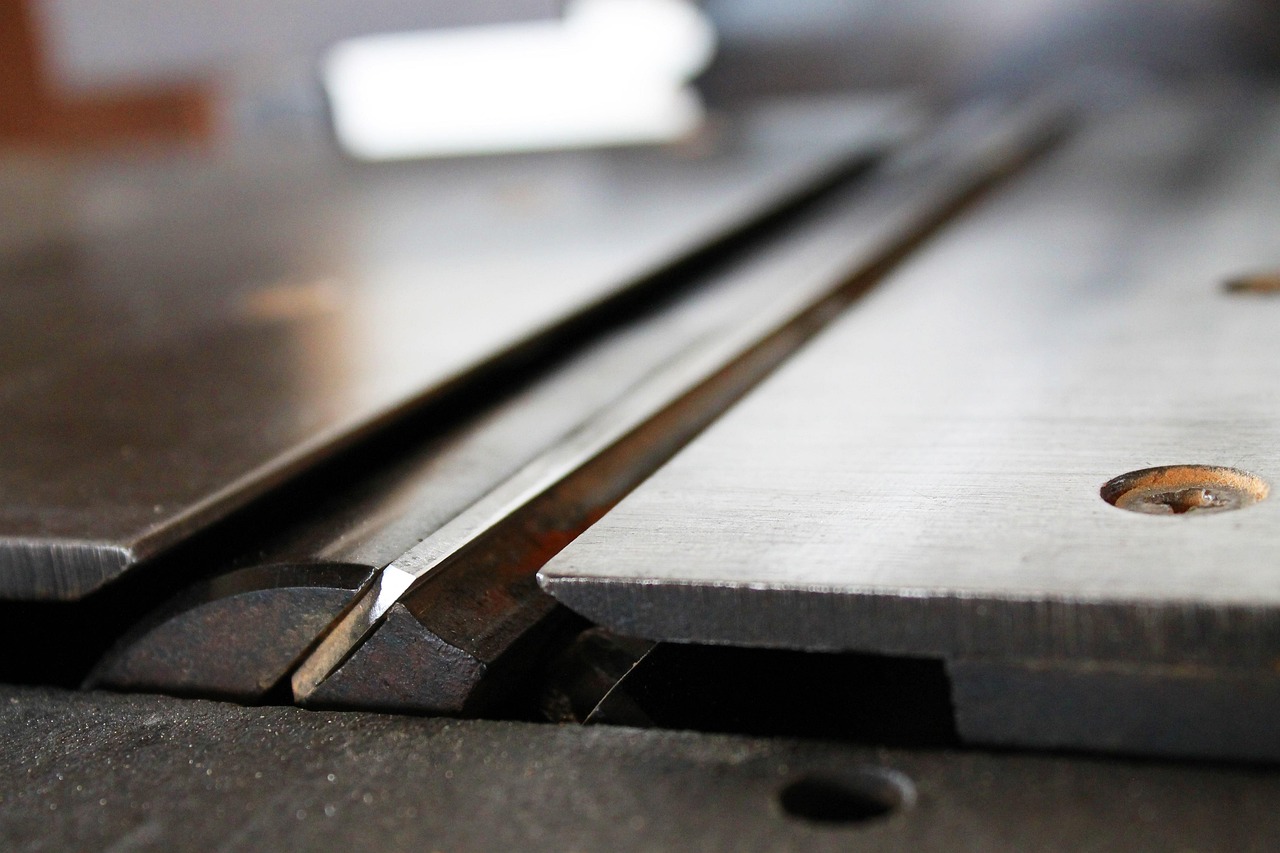

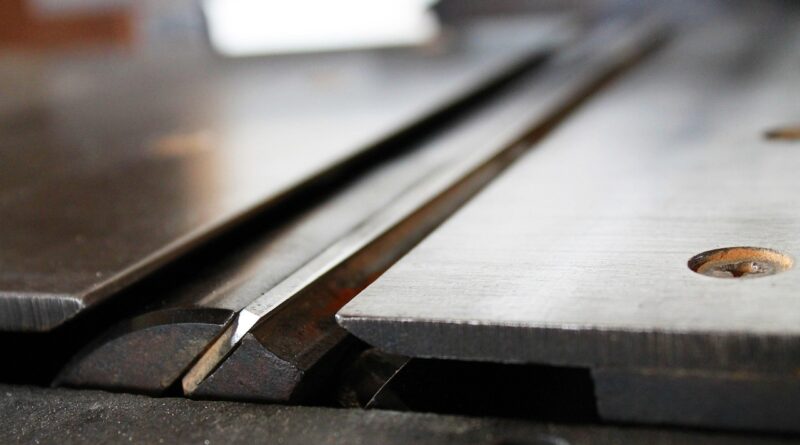

blade, sharp, close-up, equipment, tool, steel, metal, cut, cutting

Main types of CNC cutting tools

The term CNC cutting tools covers a wide range of tools used on machining centers, turning centers, mill-turn machines and automated production cells. The right category depends first on the feature being produced.

Tool type Common CNC use Selection focus
End mills Slots, pockets, profiles, 3D surfaces and finishing passes Flute count, corner radius, helix, coating, stick-out and chip evacuation
Face mills and shell mills Facing large surfaces and squaring stock Insert geometry, approach angle, cutter diameter and machine rigidity
Drills Creating holes before tapping, reaming or boring Point geometry, coolant delivery, flute design and hole depth ratio
Reamers Improving hole size and finish after drilling Allowance, runout, alignment and cutting fluid control
Boring tools Accurate hole enlargement and correction Adjustment resolution, bar stiffness and vibration control
Taps and thread mills Internal threads Thread form, material, chip control and whether the hole is blind or through
Turning inserts OD, ID, facing, grooving, profiling and threading on lathes Insert grade, chipbreaker, nose radius, lead angle and toolholder rigidity

A useful way to start is to define the operation, then narrow the tool family. A deep pocket in aluminum, for example, usually calls for strong chip evacuation and polished flutes. A hard turning operation needs an edge and grade that can resist heat and abrasion. More articles in the Cutting & Tooling section cover related tool selection and machining practice topics.

Match the tool to the workpiece material

Workpiece material is usually the first technical filter because it determines the most likely failure mode. In low-carbon steels, built-up edge and chip control may be the main concerns. In hardened steels, abrasion and heat dominate. In stainless steels, work hardening and poor thermal conductivity can quickly damage an unsuitable edge. In aluminum alloys, chip welding and evacuation are often more important than extreme hot hardness.

Many catalogs organize machining materials into broad groups such as steels, stainless steels, cast irons, non-ferrous materials, heat-resistant alloys and hardened materials. These groups are useful because they connect material behavior to tool grade, coating and edge preparation. They should not replace shop testing, but they give engineering, programming and purchasing teams a disciplined starting point.

  • Steels: Carbide inserts and solid carbide mills are common choices. Coatings and chipbreakers are selected according to hardness, interrupted cuts and whether the operation is roughing or finishing.
  • Stainless steels: Tools often need sharp but strong edges, positive geometry and reliable coolant or chip evacuation to reduce work hardening and edge chipping.
  • Cast irons: Abrasion resistance matters. Dry machining is common in some cast iron applications, but dust and machine protection must be considered.
  • Aluminum and copper alloys: Sharp edges, high rake, polished flutes and coatings that reduce adhesion are often more important than very thick thermal coatings.
  • Titanium and nickel alloys: Heat control, notch wear, tool engagement and stable cutting conditions become critical because these materials can punish rubbing and poor rigidity.
  • Hardened steels: Ceramic, CBN or specialized carbide tools may be used depending on hardness, finish requirement and cut continuity.

PCD tooling is often used for abrasive non-ferrous materials such as high-silicon aluminum and composites. It is generally not the default choice for steels because high cutting temperatures can create unfavorable chemical wear conditions. CBN is more closely associated with hardened ferrous materials, especially when turning hardened steel in stable conditions.

Substrate, coating and edge geometry work as a system

Substrate is the body material of the tool or insert. High-speed steel can still be useful for certain taps, drills and low-rigidity setups because it is comparatively tough. Cemented carbide dominates many CNC applications because it supports higher cutting speeds and stronger wear resistance. Ceramics, cermets, CBN and PCD serve more specialized conditions where heat resistance, abrasion resistance or material compatibility is the main requirement.

Coating should not be treated as decoration. Titanium nitride, titanium carbonitride, aluminum titanium nitride and related coating families are used to manage friction, heat and wear. The practical choice depends on the work material and whether the tool is running wet, dry or with minimum quantity lubrication. A coating that works well in one material can increase built-up edge or reduce sharpness in another if the geometry and cutting parameters are wrong.

Geometry is just as important. Rake angle influences cutting force and edge strength. Clearance angle affects rubbing. Helix angle changes how the tool engages the work and lifts chips. Nose radius or corner radius affects finish and edge life, but too large a radius can raise cutting pressure and chatter on a light machine. Edge preparation also matters: a honed edge may survive roughing, while a sharper edge may be needed for small tools, thin walls or gummy materials.

Why flute count changes performance

In milling, flute count affects both feed capacity and chip space. A two- or three-flute end mill can provide more chip room in aluminum slotting. Four or more flutes can be useful in steels where chip volume per tooth is lower and finishing stability is important. High-efficiency milling strategies may use variable pitch, variable helix and more flutes, but only when chip thinning, radial engagement and evacuation are properly controlled.

Why insert chipbreakers matter

In turning, the chipbreaker is not a small detail. It helps control chip curl, cutting force and surface finish. A roughing chipbreaker is designed for heavier feeds and stronger edges. A finishing chipbreaker may use lighter geometry to control chips at low feed rates. Using the wrong chipbreaker can create stringy chips, poor finish or premature edge failure even when the insert grade is technically compatible with the material.

Toolholding, runout and setup can decide the result

A high-quality cutter can perform poorly if the holder, collet, pull stud, spindle interface or setup practice is weak. Runout causes one flute or one insert edge to take more load than the others. The result can be uneven wear, poor finish, chatter and unpredictable tool life. This is especially important for small-diameter tools, reamers and finishing operations where a small error at the spindle can become a large quality problem at the part.

Tool stick-out should be kept as short as the part geometry allows. Long overhang reduces stiffness and increases the risk of vibration. When long reach is unavoidable, the process may need lower radial engagement, reduced depth of cut, a stronger necked tool, a damped boring bar or a different toolpath. It is usually better to design a stable process than to force standard parameters into a weak setup.

Balanced holders matter at high spindle speeds, but balance is only one part of the system. Clamping method, cleanliness, holder condition and correct torque all affect repeatability. Shrink-fit, hydraulic, milling chucks, ER collets and side-lock holders each have strengths. The right choice depends on cutting load, runout tolerance, tool shank design, changeover practice and budget. See also: CNC Machining.

Cutting data should start conservative and improve with evidence

Recommended surface speed, feed per tooth, feed per revolution and depth of cut should come from toolmaker data or established shop standards for the same material group and operation. Even then, catalog values are starting points, not guarantees. Machine rigidity, coolant pressure, holder quality, toolpath strategy and material batch variation can all change the safe cutting window.

Shops can improve selection by tracking tool performance in a consistent way. Useful records include the tool grade, coating, geometry, holder, stick-out, work material, hardness, coolant method, programmed cutting data, part count, wear pattern and reason for tool change. Without that record, decisions often drift toward habit or purchase price instead of measured performance.

Symptom Likely issue Selection or setup response
Chatter marks Low rigidity, excessive stick-out or unstable engagement Reduce overhang, change toolpath, use variable geometry or adjust speed and width of cut
Built-up edge Adhesion, low cutting temperature control or unsuitable coating Use sharper geometry, improve lubrication, adjust speed or choose a coating suited to the material
Rapid flank wear Abrasive material, excessive speed or weak grade match Select a more wear-resistant grade, reduce speed or improve coolant strategy
Edge chipping Interrupted cut, vibration or brittle edge Use tougher grade, stronger edge prep, better holder support or less aggressive entry
Poor hole size Runout, drill wander, incorrect reaming allowance or thermal change Check alignment, reduce runout, control allowance and stabilize coolant delivery

The most useful measure is often cost per acceptable part, not tool cost per edge. A more expensive tool can be cheaper if it reduces scrap, inspection time, tool changes or cycle interruptions. The opposite is also true: a premium tool may not pay back if the machine, holder or job volume cannot use its extra capability.

A practical selection workflow

A structured process reduces guesswork when choosing CNC cutting tools for a new job or troubleshooting an existing one.

  1. Define the feature and tolerance. Identify whether the operation is roughing, semi-finishing, finishing, holemaking, threading or deburring. Tight tolerances and surface finish requirements usually need more attention to runout and edge condition.
  2. Identify the work material condition. Record alloy, hardness, heat treatment, casting condition or forging scale. The same nominal alloy can cut differently after heat treatment or from a different supplier.
  3. Check the machine and holder limits. Confirm spindle speed, horsepower, torque curve, coolant delivery, tool length limits and holder style.
  4. Select the tool family and grade. Choose the cutter, insert or drill type first, then refine substrate, coating, geometry and chip control.
  5. Set starting parameters. Use a reliable starting point for speed, feed, width of cut and depth of cut. Avoid changing too many variables at once during trials.
  6. Inspect the worn edge. Flank wear, cratering, notching, chipping and built-up edge point to different causes. Tool wear is a diagnostic signal, not just a failure.
  7. Document the final process. Save the tool assembly, offsets, cutting data and change criteria so the result can be repeated on the next run.

This workflow also helps purchasing and engineering teams communicate clearly. Instead of asking for a better end mill, the team can define the actual problem: chip packing in a deep slot, tool deflection on a thin wall, insert notching on stainless steel or unpredictable drill life in a cross-hole application.

Frequently asked questions

Are carbide tools always better than high-speed steel tools?

No. Carbide tools are widely used because they can run at higher cutting speeds and resist wear, but high-speed steel still has value where toughness, low cost, complex tool forms or lower machine rigidity matter. The best choice depends on the operation, not on one material being universally superior.

How do I know when a CNC cutting tool should be replaced?

The tool should be replaced before wear causes size drift, poor finish, burrs, excessive spindle load or scrap. Many shops set a tool-life limit by part count, cutting time or measured wear. The most reliable method is to connect the replacement point to part quality and observed wear patterns.

What is more important, coating or geometry?

Both matter, but geometry often determines whether the tool can cut the material cleanly, while coating helps manage heat, friction and wear. A well-coated tool with the wrong edge geometry can still fail quickly. For difficult materials, substrate, coating, geometry, holder and cutting data must be treated as one system.

Can one end mill handle every material?

A general-purpose end mill can cover a range of materials for low-volume work, but it will not be optimal everywhere. Aluminum, stainless steel, hardened steel and titanium create different chip, heat and wear conditions. Production work usually benefits from material-specific tooling once volume and quality requirements justify it.

Why does the same tool perform differently on two machines?

Machine condition, spindle taper, holder quality, coolant pressure, fixture rigidity, control strategy and programmed toolpath can all change cutting behavior. If a tool works on one machine and fails on another, check setup variables before assuming the tool itself is defective.

Key takeaway

Choosing CNC cutting tools is a technical decision that connects material behavior, machine capability, tool geometry and process economics. Start with the feature and material, then select the tool family, substrate, coating, geometry and holder as a complete system. Reliable shops do not rely on claims or habit alone; they test carefully, read tool wear and keep records that connect tool selection to stable, profitable machining.
