Vectric’s VCarve and Aspire platforms have become the standard for router-based manufacturing, largely because they balance accessible programming with industrial-grade precision. The best jobs for these systems are 2D and 2.5D router tasks—signage, cabinetry, nested sheet layouts, and decorative reliefs—where NC programming translates design intent into efficient tool motion. Complex 3D machining or multi-axis sculpting sits outside their core scope, but within their range, Vectric’s post-processing and toolpath strategies make cycle times short and repeatability high.

The Core Principles of NC Programming in a CAM Environment

In a computer-aided manufacturing setup, NC programming defines how digital models become physical parts. It governs not just motion commands but also the logic that connects geometry to machine behavior.

Overview of NC Code Generation and Its Role in CNC Machining

NC code is the bridge between CAD models and CNC hardware. Each line of G-code represents a motion or control instruction—feed rate changes, spindle start commands, or path coordinates. In router work, this code dictates how efficiently material is removed while maintaining dimensional accuracy.

How Toolpaths Are Converted Into Machine-Readable G-Code

Vectric software converts toolpaths into G-code through post-processing templates that match specific controller dialects. For example, a ShopBot router uses different syntax than a Fanuc mill. The CAM engine interprets vector geometry into linear or circular interpolation moves that CNC controllers can execute directly.

Integration Between CAD Design and CAM Execution Within Vectric Systems

Vectric integrates design and machining layers seamlessly. A user can modify geometry in the design tab and instantly regenerate corresponding toolpaths without exporting files between programs. This tight integration reduces errors common when CAD and CAM are separated.

How Vectric Implements NC Programming Logic

Vectric’s internal logic manages how toolpath data becomes machine instructions. Its post-processors define syntax rules while its motion planner synchronizes feed rates with cutting parameters.

Structure of Post-Processors and Their Customization for Different Routers

Each post-processor acts as a translator between Vectric’s generic output and the target machine’s command structure. Users can edit these files to adjust coordinate references, spindle commands, or auxiliary functions like dust collection triggers. This flexibility allows one software environment to support dozens of router brands.

The Relationship Between Toolpath Strategies and NC Output Efficiency

Toolpath strategy directly affects cycle time and surface finish. For instance, offset pocketing minimizes retract moves compared to raster cutting, which reduces non-cutting time in NC output. Efficient sequencing also improves machine wear patterns over long runs.

Synchronization of Feed Rates, Spindle Speeds, and Cutting Parameters Through NC Logic

Vectric’s feed synchronization ensures consistent chip load across different regions of the job. When geometry tightens around corners or small radii, feed rates automatically scale down to maintain smooth cutting pressure—a feature particularly valuable in wood composites where burning risk increases with friction.

Workflow Optimization Through Vectric’s Toolpath Strategies

Router efficiency depends on how well toolpaths exploit material properties while minimizing air moves and redundant passes.

Adaptive Toolpath Generation for Router Jobs

Pocketing operations use step-over ratios tuned for material type; MDF may allow 50% step-over while hardwood benefits from smaller increments to prevent tear-out. Step-down depth determines load per pass; ramping entry angles reduce shock at plunge points. These parameters collectively shape both cycle time and finish quality.

Multi-Tool Operations and Automatic Toolpath Sequencing

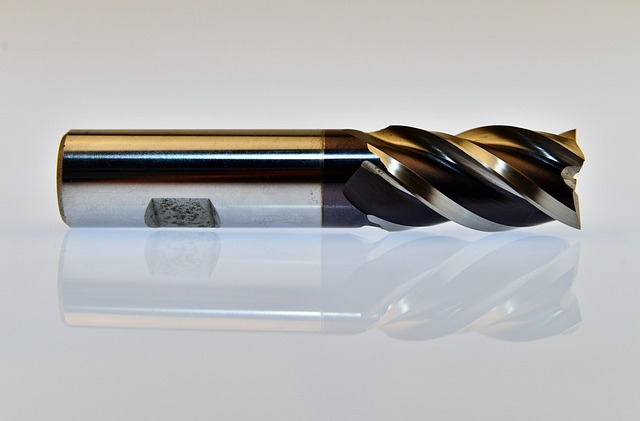

When multiple tools are involved—say an end mill for roughing followed by a ball nose for finishing—Vectric groups operations by tool type to minimize manual changes. Automated sequencing arranges cuts logically: rough first, detail last, ensuring stable fixturing throughout the process.

Matching Job Types to VCarve-Based Router Workflows

VCarve suits production environments where repeatability matters more than sculptural complexity. It shines in cabinet shops, sign fabrication centers, and panel processors working primarily in two-and-a-half dimensions.

Ideal Applications for VCarve Router Jobs

Jobs such as contour cutting cabinet doors or engraving signage rely on precise depth control rather than full 3D modeling. Relief carvings use height maps derived from grayscale images—a practical approach for mold making without full surface modeling overhead.

Limitations and Considerations in Complex Geometries

For freeform surfaces requiring continuous five-axis motion or deep undercuts, external CAM systems provide better kinematic control than VCarve’s planar assumption model. In those cases, tolerance stacking can exceed acceptable limits if attempted within 2.5D constraints.

Post Processing and Machine-Specific Optimization

Before running any job on a physical router, the generated NC file must align perfectly with machine-specific conventions—from coordinate zeroing to spindle warm-up cycles.

Customizing Post Processors for Different CNC Routers

Each router controller interprets G-code slightly differently: Fanuc uses modal commands extensively; Mach3 relies on inline syntax; ShopBot employs its own SBP format entirely separate from ISO-style code. Adjustments like axis inversion or coolant control must be configured per machine through editable post files.

Verifying and Simulating NC Output Before Production Runs

Vectric’s preview simulation offers visual verification of every cut path before execution. Users can detect potential collisions or gouges visually rather than discovering them mid-run—a safeguard that protects both tooling investment and workpieces alike.

Enhancing Efficiency Through Data Integration and Automation

Modern shops increasingly link design revisions directly with machining updates so that any CAD change flows automatically into updated G-code without manual reprogramming.

Linking Design Revisions With CAM Updates Automatically

Parametric linking ties dimension variables between design sketches and machining parameters; changing one dimension automatically recalculates all affected toolpaths. This approach minimizes human error during iterative product development cycles common in furniture prototyping or retail signage production.

Batch Processing Multiple Parts Using Template-Based NC Programming

Templates save proven setups—feed rates, cutter selections, hold-down methods—and apply them across similar parts in batch runs. Shared tooling libraries maintain consistent speeds across projects so operators spend less time recalibrating feeds between jobs.

Quality Control and Precision Management in Router Jobs

Precision management doesn’t stop at programming; it extends into runtime feedback loops that verify actual cut performance against digital intent.

Monitoring Dimensional Accuracy Through NC Feedback Loops

Routers equipped with probing accessories can embed calibration routines directly within G-code headers to verify Z-height before each batch run. Deviations trigger offset corrections automatically inside controller memory rather than requiring operator intervention mid-cycle.

Surface Finish Optimization Through Controlled Feed Dynamics

Feed-to-speed ratio influences surface sheen dramatically: too slow causes burn marks; too fast leaves chatter lines visible under finish coats. Experienced machinists often alternate climb milling on outer contours with conventional passes internally to balance cutter pressure distribution across grain direction differences in plywood laminates.

The Strategic Role of NC Programming in Modern Router-Based Manufacturing

NC programming now serves as the connective tissue linking design offices with shop floors across distributed production networks where routers operate under unified code standards regardless of brand differences.

Integrating Vectric Software Into Broader Production Ecosystems

Larger facilities often connect Vectric outputs into enterprise resource planning systems so each job carries metadata—operator ID, material type, estimated runtime—for scheduling analytics downstream in MES dashboards used by supervisors tracking throughput efficiency metrics daily.

Continuous Improvement Through Data Analysis of Past Jobs

By reviewing historical machining logs—spindle load data versus programmed feed rates—engineers identify recurring inefficiencies such as over-conservative speeds on soft materials or excessive retract heights wasting seconds per move sequence across thousands of parts annually.

FAQ

Q1: What industries benefit most from VCarve-based workflows?
A: Cabinetry manufacturers, sign makers, furniture producers, and educational labs commonly use VCarve because it handles repetitive 2D/2.5D routing tasks quickly without complex setup requirements.

Q2: Can VCarve handle full 3D machining?
A: It supports relief-style 3D carving but not continuous multi-axis surfacing; Aspire or specialized CAM platforms are better suited for sculpted geometries requiring simultaneous motion across more than three axes.

Q3: How does post-processing affect final part accuracy?
A: Properly configured post-processors prevent coordinate mismatches that could shift zero points or misinterpret spindle commands; incorrect settings often cause dimensional drift even if toolpaths are correct digitally.

Q4: Is simulation necessary before every run?
A: Yes—simulation detects collisions early and confirms correct cut order especially when using multiple tools or layered materials where depth mistakes could destroy fixtures instantly.

Q5: What’s the main advantage of template-based NC programming?
A: Templates shorten setup time by reusing validated feeds, speeds, offsets, and hold-down strategies across similar parts ensuring consistency while freeing operators from repetitive input steps each session.
