What Is Surface Roughness Ra and How Do You Specify It Correctly?

Why Does Surface Roughness Ra Matter in Machining?

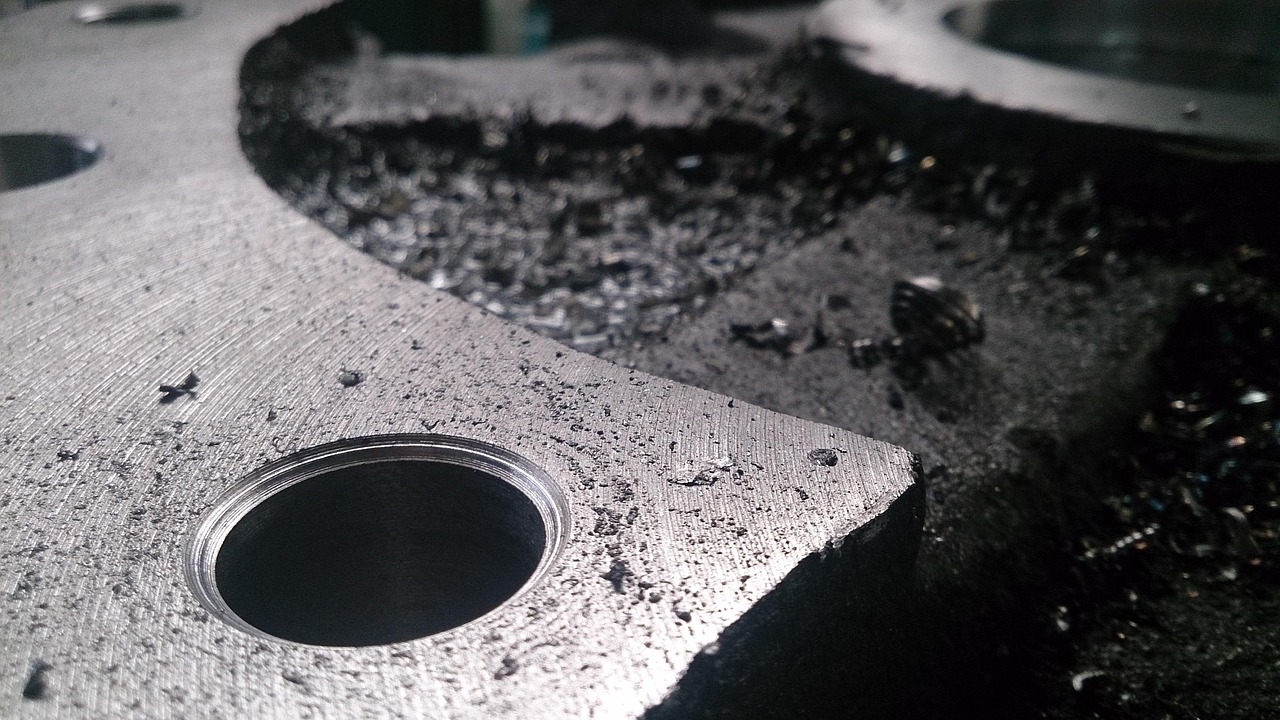

Surface roughness Ra is one of the first finish numbers people see on a machined drawing, and it is also easy to apply the wrong way. If you buy turned shafts, milled plates, valve bodies, bearing housings, or sealing parts, Ra tells the supplier how smooth the surface needs to be after cutting or finishing. For more related finishing topics, see the Surface Finishing section.

It Turns Texture into a Number

Ra means arithmetic average roughness. In shop terms, it is the average absolute height deviation of a filtered surface profile from its mean line. ISO 21920-2:2021 gives the current profile terms and surface texture parameters, while ASME B46.1-2019, reaffirmed in 2026, defines surface texture as roughness, waviness, and lay for U.S. practice. NIST also lists Ra among the roughness height parameters in its 2014 roughness and step-height calibration work. This matters because Ra is not just a loose “smoothness” number. It is a measured value tied to filtering, length, direction, and instrument condition.

It Changes Fit, Friction, Sealing, and Coating Behavior

A surface can pass every size tolerance and still fail if the finish is wrong. A shaft seat may gall, an O-ring groove may leak, a gasket face may weep, or paint may chip because the surface texture does not suit the job. If the face is too rough, wear can start early. If it is too smooth, a coating or adhesive may not have enough small valleys to grip. This is why the right Ra callout should come from how the face works, not from an old drawing note.

It Gives Buyers and Suppliers a Shared Language

For export manufacturing, Ra cuts down guessing. A drawing note such as Ra 3.2 µm max gives the supplier a better target than “good finish.” The unit still has to be clear. One micrometer equals about 39.37 microinches, so Ra 0.8 µm is close to 32 µin. If the unit is missing, a normal machined finish can turn into a dispute. It sounds simple, but many surface finish issues start with that missing unit.

What Does Ra Really Measure?

Ra is useful because it gives one simple value, but the value does not show all the surface details. It does not describe every peak, valley, scratch, or machining mark. Treat it as the first check, then add other parameters when the part function needs tighter control.

Mean Deviation, Not Peak Height

Ra averages profile deviations. A single deep scratch may not move the value much if the rest of the trace is smooth. A fine and regular tool pattern can also give a similar Ra to a random damaged surface. For that reason, an Ra number alone is not enough for a safety-critical sealing face, hydraulic spool, or bearing race unless the drawing gives more context.

Ra and Rz Show Different Risks

Rz reports peak-to-valley height behavior, so it often shows features that Ra averages out. KEYENCE’s public roughness examples state that Ra is used for sliding surface smoothness, while Rz is used for surface height, and they note that Ra alone may miss isolated protrusions. On real parts, one protrusion can cut a seal lip or start wear even when the Ra value looks acceptable. That is why Ra and Rz are often used together on surfaces where contact risk is high.

Two Surfaces Can Share the Same Ra

A plateau-honed cylinder bore and a polished face with random scratches may show close Ra values, but they will not work the same way. If oil retention matters, check material ratio or related bearing-area parameters. If sharp peaks matter, add Rz, Rp, or peak count. If direction matters, specify lay. Ra is the starting number, not the full surface description.

How Should You Read Surface Roughness Ra on a Drawing?

A good drawing tells the shop what to make and tells inspection how to check it. A weak drawing only gives a number and leaves the rest open to debate. When the part moves between countries, suppliers, or inspection labs, one missing detail can delay the job more than the machining.

Use the Correct Unit

Surface roughness is often shown in micrometers on ISO-style drawings and microinches in many U.S. shop notes. Ra 3.2 µm is about 125 µin. Ra 1.6 µm is about 63 µin. Ra 0.8 µm is about 32 µin. If a buyer writes “32 Ra” with no unit, one supplier may read it as 32 µin, while another may ask if it means 32 µm. Those two finishes are very different in production and cost.

State the Limit and the Area

Most functional notes should say whether the value is a maximum, minimum, or target. “Ra 1.6 µm max on gasket face” is clear. “Ra 1.6” sitting near a view is not clear enough. If only one bore, groove, or flange face needs that finish, mark that area. Do not put a fine Ra on every surface unless every surface really needs it. A hidden mounting pad does not need the same finish as a dynamic seal land.

Add Process or Lay Only When It Matters

Specifying a process can help in some cases, but it can also limit the supplier for no good reason. “Ground finish” may be correct for a hardened shaft, yet it may block hard turning or burnishing if those methods meet the part function. Lay is a different issue. If a sliding seal must not cross sharp machining marks, the lay direction should be shown. ASME B46.1 treats lay as part of surface texture for this reason.

Which Ra Values Fit Common Manufacturing Jobs?

There is no public ISO or ASME rule that says one process always produces one exact Ra. Tool nose radius, feed, speed, insert wear, coolant, material, and machine condition all change the result. Public production-method charts, including charts derived from Machinery’s Handbook, often list boring and turning around Ra 6.3 to 0.4 µm and lapping around Ra 0.4 to 0.05 µm. Use those numbers as planning ranges, not as inspection promises.

Ra 3.2 µm for General Machined Faces

Ra 3.2 µm is common for many non-sealing milled or turned surfaces. You may still see tool marks, but the surface is usually fine for brackets, covers, simple housings, and general contact faces. If the supplier can reach it in the normal machining pass, cost and lead time stay easier to control. Do not use it for a sliding seal just because it looks tidy on a drawing.

Ra 1.6 to 0.8 µm for Better Fits

Ra 1.6 µm and Ra 0.8 µm are often used when the surface has a closer fit, a cleaner visual finish, or moderate sealing duty. This range may need a lighter finishing pass, a sharper tool, better fixturing, or grinding, depending on the material. In aluminum, it may be easy to achieve. In gummy stainless, it can be more troublesome. A small burr at the edge can also spoil the reading, which is frustrating but common in real inspection.

Ra 0.4 µm and Finer Need Finishing

Ra 0.4 µm, 0.2 µm, and finer values usually move the job toward grinding, honing, lapping, polishing, roller burnishing, or electropolishing. No reliable public standard gives one fixed cost multiplier for each lower Ra step, so a claim like “double the cost” is only shop opinion unless it is backed by a quote. The safer rule is simple. If the function does not need it, do not call it out.

How Is Surface Roughness Ra Measured Correctly?

Measurement is where many Ra arguments start. The same surface can read differently if the cutoff, trace direction, filter, stylus condition, or instrument type changes. A good drawing and a good inspection plan need to match, or the number becomes hard to defend. See also: CNC Machining.

Clean the Surface Before the Trace

KEYENCE’s public stylus measurement procedure, based on ISO 4288:1996 examples, starts with removing oil and dust from the target surface. That is not a minor step. Coolant residue, shop dust, fingerprints, polishing paste, and loose chips can raise the measured profile. For tight finishes, cleaning may change the result more than a small feed-rate adjustment.

Pick the Cutoff from the Expected Ra

Cutoff length separates roughness from longer waviness. KEYENCE’s ISO 4288-based table gives practical examples for non-periodic profiles:

• For 0.1 < Ra ≤ 2 µm, sampling length is 0.8 mm and evaluation length is 4 mm.
• For 2 < Ra ≤ 10 µm, sampling length is 2.5 mm and evaluation length is 12.5 mm.
• For 10 < Ra ≤ 80 µm, sampling length is 8 mm and evaluation length is 40 mm.

If the cutoff is not stated and the surface is near a boundary, inspection should confirm the method before rejecting parts. This avoids a case where the part is acceptable under one setup and rejected under another.

Measure Across the Lay When the Drawing Is Silent

Direction matters in surface roughness measurement. KEYENCE’s measurement guide says that when the measurement direction is not indicated, the target should be positioned so the direction gives the maximum height parameters such as Ra and Rz. For many machined metal parts, this means tracing across the tool marks, not along them. Along the lay, the same face may read much smoother.

What Mistakes Cause Bad Ra Decisions?

Most Ra mistakes are not math mistakes. They come from copying old notes, choosing a finish that sounds high grade, or comparing inspection results made by different methods. A little care at the drawing stage usually saves more time than a long email chain after the parts arrive.

Treating Ra as a Cosmetic Grade

A lower Ra does not always mean a better part. A grippy handle, bonded pad, painted bracket, or gasket surface may need some texture. A mirror-like face can look clean and still be wrong for the job. Cosmetic finish should be described with appearance samples, coating notes, or visual acceptance rules, not only with Ra.

Quoting a Tight Ra Without a Cost Reason

If Ra 0.8 µm works, calling Ra 0.2 µm may add grinding or polishing with no useful gain. The supplier may accept the order, but the process route changes. Extra handling can also bring new risks, such as rounded edges, changed flatness, embedded abrasive, or delayed delivery. Use the roughest finish that still meets wear, sealing, cleaning, coating, and appearance needs.

Comparing Data from Different Instruments

Stylus and optical instruments do not always read the same surface in the same way. NIST’s stylus profilometer page notes that roughness height traceability is tied to the SI unit of length through a calibrated-radius sphere, and NIST also provides reference software and datasets for checking surface texture calculations. For production work, calibration, setup, and software settings are part of the result. They are not just paperwork kept beside the machine.

FAQ

Q1: Is Surface Roughness Ra the Same as Surface Finish? A: No. Surface finish is the wider surface condition. Ra is one roughness parameter inside that idea, along with waviness, lay, Rz, and other texture values.

Q2: Is a Lower Ra Always Better? A: No. Lower Ra can reduce friction or improve sealing in some parts, but it can also hurt coating adhesion, oil retention, or cost. Choose Ra based on what the surface has to do.

Q3: Should a Drawing Use Ra or Rz? A: Use Ra when average smoothness is enough. Add Rz when isolated peaks, scratches, or valleys could affect sealing, wear, or contact stress.

Q4: What Is a Common Ra for CNC Machining? A: Many general machined faces use Ra 3.2 µm, while better fits often use Ra 1.6 or 0.8 µm. The final choice depends on material, tool path, and part function.

Q5: How Can You Avoid Surface Roughness Disputes with Suppliers? A: State the unit, limit, surface area, measurement direction, cutoff if needed, and any related parameter such as Rz. For critical parts, agree on the inspection method before production.
