Is CNC Plastic Machining the Best Choice for Precision Plastic Parts?
Why Does CNC Plastic Machining Matter for Precision Parts?
When buyers ask about CNC plastic machining for functional parts, the usual need is simple: make a stable plastic part quickly and avoid mold cost before the design is fixed. For more process background, the CNC machining category is a useful place to compare manufacturing choices before you lock the drawing package.
Fast Changes Without Mold Tooling
CNC machining cuts material from plate, rod, tube, or molded blanks, so pockets, holes, bosses, and edge details can be changed with a new program instead of a new mold. Ensinger describes CNC milling as suitable for complex contours, pockets, hole patterns, grooves, flat faces, and free-form shapes. For that reason, it often makes sense for pilot builds, replacement wear parts, jigs, test fixtures, and low-volume machine components.
Stable Geometry When Material Behavior Is Respected
Plastic is not just softer metal. Curbell Plastics notes that engineering plastics have lower thermal conductivity and higher thermal expansion than metals. On the shop floor, this means heat stays close to the cut, the part grows during machining, and it may shift again after cooling. Better results usually come from sharp tools, sensible fixturing, heat control, and enough time for stress to settle.
Cleaner Specs for Real Working Conditions
A plastic part should be specified around how it will work, not only around its drawing shape. A guide roller near water, a PEEK insulator near heat, and a food-grade wear strip all carry different risks. Temperature, humidity, chemical contact, load time, and cleaning method can change the final part. One clear note on the drawing can prevent an expensive rework round later.
Which Plastics Work Best for CNC Plastic Machining?
The best plastic is not always the highest-priced one. It is the plastic that keeps its size, strength, friction behavior, and surface finish in the real service setting. Public material tables help with first screening, but the final choice still depends on load, temperature, and contact conditions.
Acetal and PET for Dimensional Stability
Acetal, often called POM or Delrin-type material, is a common first choice for gears, bushings, rollers, spacers, and precision mechanical parts. Protolabs lists acetal grades with tensile strength around 78 to 79 MPa in its public CNC plastics table, while PET grades are listed around 79 to 85 MPa. Curbell also points to low-moisture materials such as acetal and PET as better choices when narrow tolerances matter.
Nylon for Wear When Moisture Is Managed
Nylon works well for wear pads, sheaves, and sliding parts, but it absorbs moisture. UL Prospector published a polyamide moisture study using 60 mm by 60 mm by 2 mm specimens and found that nylon absorbs moisture at levels higher than most engineering plastics. The main point is easy to miss in purchasing: if a nylon part has tight fits, state whether inspection is dry-as-machined or at service humidity.
PEEK, PEI, and PTFE for Demanding Conditions
High-performance plastics justify their cost when heat, chemicals, insulation, or friction decide the design. Protolabs lists PEEK at 100 MPa tensile strength with a 152°C heat deflection value, PEI or Ultem 1000 variants at 110 to 127 MPa with 170°C to 200°C values, and PTFE at 22 MPa with a 260°C value. The tradeoff is clear enough for sourcing work: PEEK and PEI handle load better, while PTFE is mainly chosen for chemical resistance and low friction.
How Tight Can Tolerances Be on Machined Plastic Parts?
Tolerance is where many plastic machining jobs either go smoothly or become costly. A print copied from an aluminum part can push a polymer blank too far, especially when the part has long, thin features, hard clamping, or heat from cutting.
Plastic Tolerance Is Not Metal Tolerance
Curbell states that plastics require greater production tolerances than metals. That does not mean plastic parts are rough or low grade. It means size, geometry, material grade, filler content, moisture, and measuring temperature all affect the result. There is no useful public number that fits every resin and every part shape, so broad claims like every plastic part can hold one tolerance should be checked carefully.
Heat Growth Moves Critical Features
Friction heat can expand the workpiece during the cut, and then the part shrinks as it cools. Curbell warns that too much heat input can cause high stress, warping, fracture, and out-of-tolerance dimensions. On a 200 mm guide rail, even a small heat-related shift can matter when the hole pattern must fit a steel frame. Sometimes the chips in the bin show the problem before the micrometer does.
Inspection Should Match Use
For tight parts, state the inspection temperature, datum plan, and moisture condition. A nylon bearing measured right after machining may not match the same bearing after one week in a humid assembly room. For POM, PET, PEEK, or PEI, the risk is often lower, but it is still there. Good drawings tighten only the features that control the actual function.
What Design Choices Make Plastic CNC Parts Easier to Machine?
Design for plastic machining is not about making every feature larger. It is about giving the cutter, clamp, and material a fair working condition. Before release, check the model for these common trouble spots:
- Very thin walls beside deep pockets
- Sharp internal corners that require tiny tools
- Long slots that release stress on one side
- Threaded holes in soft or slippery plastics
- Tight cosmetic surfaces near heavy roughing cuts
Thick Walls and Balanced Material Removal
Residual stress can already be inside extruded sheet and rod before machining starts. Curbell’s August 2023 dimensional tolerance paper explains that stress can be introduced during extrusion and then released during machining, causing warp or shape change. If one side of a plate loses much more material than the other side, balanced roughing or an intermediate rest period often helps.
Radii, Holes, and Threads That Fit Cutting Tools
Internal corners should match cutter sizes that are realistic for the job. Small radii require small tools, and small tools can flex. For holes, Curbell recommends coolant and frequent drill withdrawal to remove chips and add cooling, especially on smaller holes. For threads in softer plastics, metal inserts may be safer than cutting fine internal threads into a part that will be assembled many times.
Fixturing Areas That Can Be Cut Away
Clamps can bend plastic, and the part may spring back after release. Curbell describes clamping on sacrificial stock that gets removed at the end, and it also notes that double-sided tape can hold some plastic parts without adding vise stress. This is not a special trick, but it is the kind of shop decision that often keeps flat parts flat. See also: CNC Programming.
How Should Cutting Strategy Change Compared With Metal?
A metal-style approach can damage plastic parts. Heavy pressure, dull cutters, packed chips, and hot finishing passes can leave melted edges, fuzzy burrs, and shifted dimensions. A sound plastic machining plan cuts cleanly and lets heat move out of the cut zone.

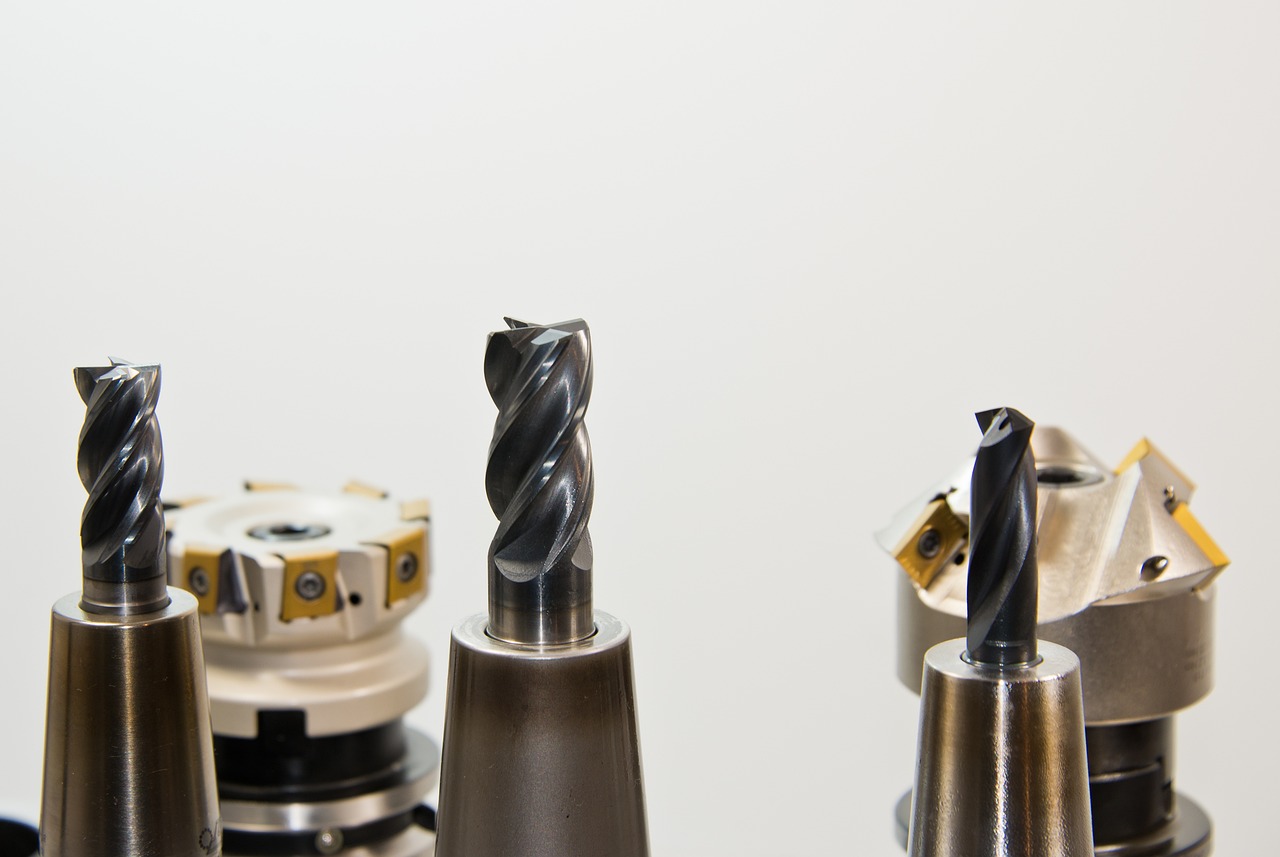

Sharp Tools and Room for Chips
Ensinger and Curbell both stress material-specific machining choices. Tools need sharp, smooth cutting edges and enough flute space for chips. Curbell says blunt edges increase heat, which can lead to distortion and thermal expansion. For many plastics, the chip should carry heat away from the part. If chips smear or weld back to the surface, the process is already warning you.
Cooling Through Chips, Air, or Water
Curbell notes a trend toward dry machining for engineering plastics, with exceptions such as deep drilling, thread cutting, and sawing reinforced materials. When cooling is needed, compressed air can cool the cut and clear chips at the same time. Water-based coolants can help in some jobs, but amorphous plastics need care because some materials may be prone to stress cracking.
Roughing, Resting, and Final Passes
For thick sections or tight tolerances, rough the part first, leave stock, and finish after stress has dropped. Curbell’s tolerance paper says some plastic parts can be machined rough, allowed to relax for several days, and then finished. Annealing may be added before final machining when lower residual stress is needed. It adds lead time, but it can stop a late scrap issue.
How Can You Choose a Supplier for CNC Plastic Machining?
A capable supplier should discuss material behavior before promising price and lead time. If the conversation sounds the same as aluminum machining, take a step back. Plastic machining has its own rules, and those rules affect cost, inspection, packaging, and long-term fit.
Material Advice Before Quoting
Look for practical questions at the start: What temperature will the part see? Is it wet? Is it sliding? Does it need FDA-compliant material, electrical insulation, or chemical resistance? A supplier that asks these questions early is more likely to suggest POM instead of nylon for a humidity-sensitive fit, or PEI instead of PEEK when heat resistance is enough and cost is still important.
Inspection and Traceability for Critical Industries
For medical devices, food equipment, semiconductor tooling, and aerospace support parts, paperwork can matter as much as the machining. Ask about material certificates, lot traceability, inspection reports, clean handling, and packaging. If dimensions depend on conditioning, ask the supplier to state the part condition at inspection. It may feel like extra admin work, but it keeps quality disputes short.
DFM Feedback That Saves Rework
Good design-for-manufacturing feedback should be plain and specific. It should call out thin walls, deep pockets, risky tolerances, burr-prone edges, and clamping concerns. It should also separate critical features from nice-to-have dimensions. The goal is not just a neat quote. The goal is a part that fits the machine, holds up in service, and can be reordered without trouble.
FAQ
Q1: Is CNC plastic machining better than injection molding? A: It is often better for prototypes, low-volume parts, changing designs, and machined stock materials. Injection molding is usually stronger for high-volume production after the design is stable.
Q2: Which plastic gives the best dimensional stability? A: Acetal and PET are common choices for stable precision parts. PEEK and PEI can also perform well when heat or strength requirements are higher.
Q3: Can nylon be CNC machined accurately? A: Yes, but moisture must be managed. For tight fits, state the inspection condition and service humidity so the finished size matches the actual use case.
Q4: Why do plastic parts warp after machining? A: Warping often comes from residual stress, uneven material removal, heat buildup, or hard clamping. Roughing, resting, annealing, and better fixturing can reduce the risk.
Q5: What should you send for a CNC plastic machining quote? A: Send a 3D model, 2D drawing, material request, quantity, tolerance notes, surface needs, working temperature, chemical exposure, and any certificate or inspection requirements.
