PCB CNC machining explained for prototypes, routing and depaneling
What PCB CNC machining actually means

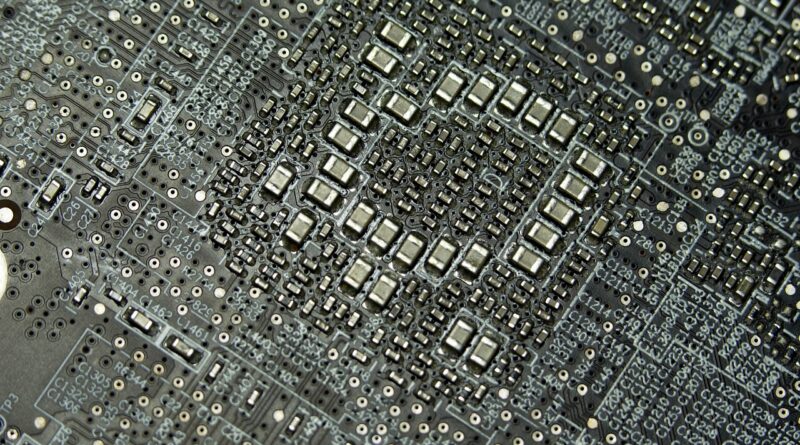

PCB CNC machining uses computer-controlled cutting, drilling or engraving tools to make or finish printed circuit boards. In practice, it usually covers three different jobs: milling copper isolation paths for quick prototypes, drilling holes in laminate, or routing finished board outlines and panels. It is useful when engineers need a physical board quickly, when a board profile includes accurate mechanical features, or when panels must be depaneled with controlled edge quality.
It also has clear limits. A CNC router does not automatically provide plated through holes, solder mask, multilayer lamination, controlled impedance or high-density features unless those steps are handled by a broader PCB fabrication process.
For readers coming from a general machining background, the key distinction is that PCB work combines mechanical accuracy with electrical design intent. The cutter is not only shaping material. It is also defining clearances that determine whether traces, pads and nets remain electrically separate. That makes process planning, file preparation and inspection just as important as spindle speed or feed rate. For more general context on subtractive manufacturing, see the CNC machining section.
Where CNC fits in the PCB manufacturing workflow
CNC appears at several points in PCB production, but the purpose changes with the stage. In a prototype lab, a desktop mill may cut isolation gaps into copper-clad FR-4 so a circuit can be assembled the same day. In a board house, CNC drilling and routing machines may process panels after imaging, etching, lamination and plating. In an assembly environment, a routing machine may separate populated boards from a panel while reducing mechanical stress compared with hand breaking.
The table below summarizes the main roles and the practical considerations for each.

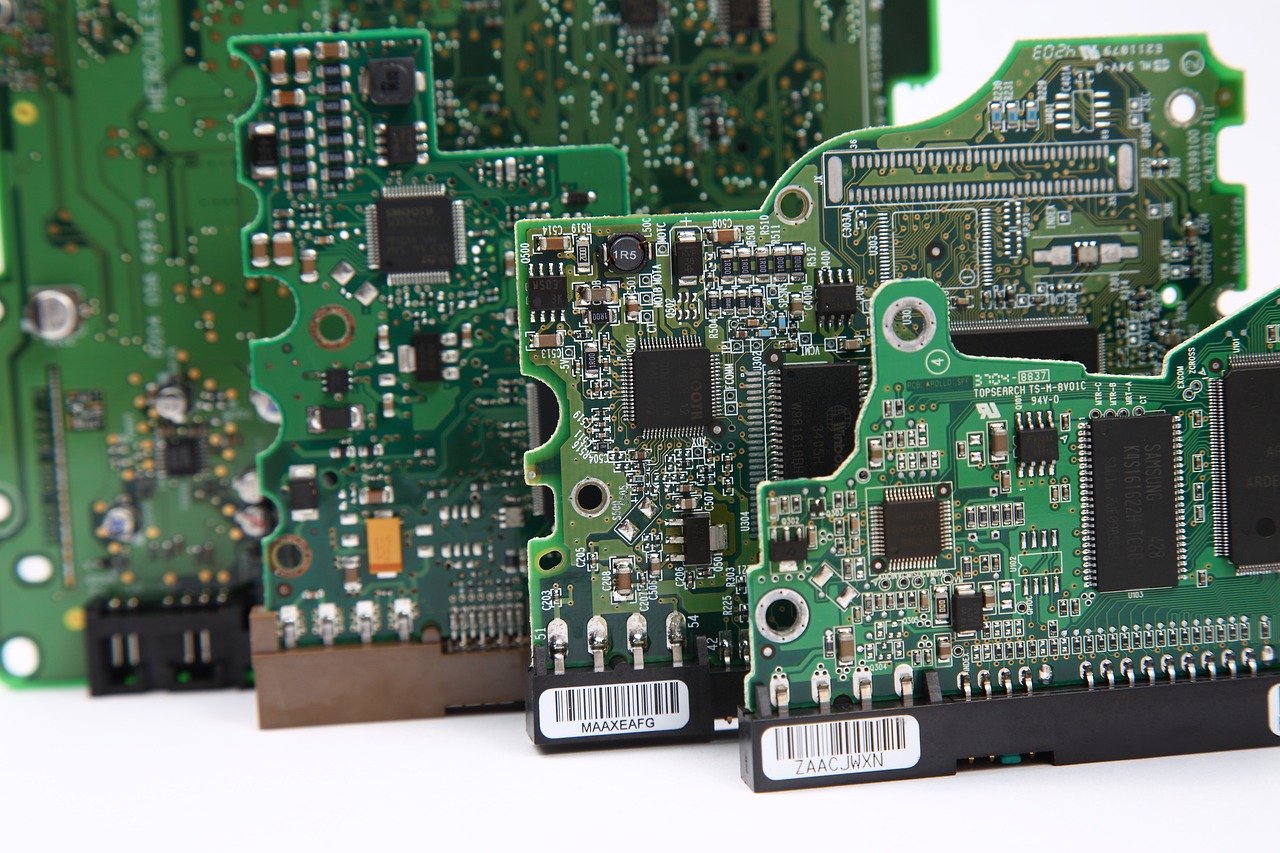

| PCB CNC task | Typical purpose | Key limitation |
|---|---|---|
| Isolation milling | Remove narrow copper paths around traces and pads for fast prototypes | Feature size is limited by tool tip diameter, runout, board flatness and copper burr control |
| Mechanical drilling | Create component holes, mounting holes, vias or tooling holes | Non-plated holes are straightforward; plated vias require additional fabrication steps |
| Board outline routing | Cut the final profile, internal slots, notches and cutouts | Inside corners and slot widths must respect cutter diameter |
| Panel depaneling | Separate boards from production panels after fabrication or assembly | Tab design, component keepout and dust control affect yield and cleanliness |
| Fixture and test tooling | Machine support plates, nests, probe plates and assembly aids | Fixture tolerances must match board tolerances and datum strategy |
For single-sided concept boards, CNC isolation milling can be faster than ordering a small batch from a fabricator. For double-sided boards, the process becomes more sensitive to registration between sides. For multilayer boards, dense BGAs, small vias or impedance-controlled RF layouts, CNC-only production is usually not the right route because the electrical stack-up and plated interconnects depend on specialized PCB fabrication steps.
Design rules that matter more than keyword-level tolerances
Searches for pcb cnc often lead to simple questions such as “what tolerance can I get?” or “what trace width is possible?” The accurate answer is conditional. PCB CNC capability depends on machine rigidity, spindle runout, tool geometry, laminate flatness, copper thickness, holding method and CAM strategy. A machine advertised with a very small theoretical step size may still produce poor isolation if the board surface is not probed, the tool tip is worn, or a copper burr folds back across a gap.
Trace and clearance planning
For isolation milling, the cutter must physically fit between conductive features. If the design has narrow gaps between pads, vias and traces, a larger end mill or engraving bit cannot create a clean isolation channel. Smaller tools can reach tighter areas, but they are more fragile, cut more slowly and are more affected by runout. The practical approach is to choose the intended tool set first, then set the minimum clearance in the PCB layout to exceed the real cutting width with a safety margin.
Hole and slot planning
Drilled holes should be specified by finished size, tolerance and plating expectation. In a CNC-only prototype, a through-hole may simply be a drilled non-plated hole. In a fabricated PCB, a plated through hole involves drilling followed by metallization, so the drill size and finished hole size are not the same. Slots, notches and internal cutouts should have radii that the router bit can produce. Sharp internal corners are a design request, not a machining reality, unless another process such as laser cutting or secondary finishing is used.
Edge clearance and component keepout
Routing a board outline removes material near the board edge, so copper, solder mask openings and components need adequate keepout. Depaneling also needs space for tabs, mouse bites or routed channels. When components sit too close to a tab or routed path, the board may pass electrical test but fail later because of cracked solder joints, chipped laminate or contamination. A good layout treats mechanical separation as part of the electrical design, not as an afterthought.
Files and CAM preparation for CNC PCB work
PCB CNC work usually starts with manufacturing data exported from electronic design automation software. Gerber files commonly describe copper, mask, legend and outline layers, while drill files commonly carry hole locations and sizes. Public documentation from Ucamco, the steward of the Gerber format, describes Gerber as a standard way to transfer PCB fabrication image data. KiCad documentation also notes that PCB tools can generate CNC drilling files in formats such as Excellon or Gerber X2, depending on the workflow.
For CNC milling, the CAM step translates board data into toolpaths. This is where many prototype failures begin. The CAM software must know which areas remain copper, which areas are cleared, which holes are drilled, and which outline is cut through. It also needs tool diameter, cutting depth, safe height, order of operations and, where used, surface probing to compensate for a board that is not perfectly flat.
- Verify units and origin. Inch and metric mismatches can ruin drill locations or outline size.
- View Gerber and drill data together. Holes, pads and outlines should align before toolpaths are generated.
- Separate operations. Isolation, drilling and outline routing often need different tools and depths.
- Use tabs or a clear holding strategy. A board that breaks free during the final profile cut can be damaged by the tool.
- Simulate and inspect air cuts when possible. A short verification routine can catch wrong-side milling, missing drill files or inverted layers.
Engineers should also distinguish between design files and machine-ready G-code. Gerber and drill files communicate design intent; G-code controls machine motion. Converting one to the other requires assumptions about tools, machine setup and material behavior. Those assumptions should be documented, especially if the work will be repeated or transferred from a lab mill to a production supplier.
Material, tooling and safety considerations
Most rigid PCBs use FR-4 or related glass-reinforced epoxy laminates. Machining these materials is different from cutting aluminum, acetal or wood. The glass fibers are abrasive, which accelerates tool wear. The resin and glass dust require control at the source. Public safety guidance from organizations such as OSHA and NIOSH treats fibrous glass dust as an exposure concern for the eyes, skin and respiratory system, so PCB machining should use effective extraction, filtration and appropriate personal protective equipment according to the shop’s safety plan.
Tool choice directly affects edge quality and electrical reliability. Carbide drills and end mills are commonly used because glass-reinforced laminate is abrasive. Engraving bits can cut narrow isolation paths, but their effective width changes with depth. That makes Z-height control critical. If the bit plunges deeper than expected, a fine trace can become too narrow or disappear. If it cuts too shallow, copper may remain connected where isolation is required.
Workholding is another common source of error. Thin copper-clad laminate can bow under tape, vacuum or clamping pressure. A height map or probing routine can reduce depth variation, but it does not replace a clean, flat spoilboard and a stable fixture. For double-sided milling, alignment pins or machined datums are often more reliable than visual repositioning. When the board is small, even a modest registration error can shift drilled holes off pads. See also: CNC Programming.
Coolant is rarely handled the same way as in metal cutting. Many PCB milling and routing processes rely on dry machining with vacuum extraction, although industrial systems may use specialized dust collection and process controls. The goal is to prevent conductive debris, glass dust and laminate chips from settling on the board or entering the machine’s motion components.
Quality checks after PCB CNC machining
A machined PCB can look acceptable and still be electrically unreliable. Inspection should combine visual, dimensional and electrical checks. Start with continuity: every intended net should conduct, and every isolated gap should remain open. A magnifier or microscope helps identify copper burrs, torn pads, incomplete isolation and hairline bridges, especially near fine-pitch components, ground pours and milled slots.
Dimensional checks should focus on features that affect assembly: hole diameter, hole position, board outline, connector location, mounting hole spacing and tab remnants. If the board will fit into a housing, a profile error may matter more than a cosmetic burr. If the board will be soldered manually, slightly rough edges may be acceptable, but lifted pads or undersized holes can stop assembly.
IPC standards are often used as reference points in professional PCB work. IPC-2221 covers generic printed board design principles, IPC-A-600 addresses acceptability of printed boards, and IPC-6012 covers qualification and performance for rigid boards. These documents are not a substitute for a project drawing, but they show why acceptance criteria should be specified instead of assumed. A prototype milled in a lab may be acceptable for functional testing while still falling short of production acceptance requirements.
For repeated PCB CNC work, keep a short process record. Note the laminate type, copper weight if known, tool part number, tool age, feed rate, spindle speed, depth of cut, probing method and inspection result. Over time, this creates a practical capability window for the specific machine rather than relying on generic online tolerance claims.
When CNC is the right choice and when it is not
CNC is a strong choice when the value is speed, iteration or mechanical definition. It can work well for a same-day single-sided prototype, a fixture board, a rough proof of circuit layout, a custom cutout, or a depaneling task where routing geometry is already designed into the panel. It is also useful when mechanical engineers and electronics engineers need to validate board shape, mounting holes and connector positions before committing to production tooling.
CNC is a weaker choice when the value is high-density electrical performance. Fine-pitch components, dense via fields, buried or blind vias, controlled impedance traces, repeatable solder mask registration and multilayer stack-ups normally require a professional PCB fabrication route. Even if a CNC mill can cut a visible trace, that does not mean the resulting board has the dielectric control, plating reliability or surface finish needed for the final product.
The practical decision is not always “CNC versus PCB fabrication.” It is often “which stage should CNC handle?” A project may use CNC for an early proof, then send validated Gerber and drill data to a board supplier. Another project may use standard fabrication for the board and CNC routing for panel separation or final mechanical features. Understanding that distinction prevents overpromising what a router can do while still taking advantage of its speed and flexibility.
Frequently asked questions
Can a CNC machine make a complete PCB?
Yes, for simple boards, especially single-sided prototypes. A CNC mill can remove copper for isolation, drill holes and cut the outline. However, it will not automatically provide plated through holes, solder mask, silkscreen, multilayer lamination or controlled impedance. Those features require additional PCB fabrication processes.
Is PCB CNC machining accurate enough for fine traces?
It can be accurate enough for some fine prototype work, but the limit depends on the full setup rather than the controller resolution alone. Tool tip diameter, runout, laminate flatness, Z-height control and burr formation usually define the real minimum clearance.
What files are needed for CNC PCB milling?
The usual starting point is Gerber data for copper and outline layers plus drill data for holes. CAM software then converts that information into toolpaths for isolation milling, drilling and routing. Before cutting, the operator should verify units, origin, layer orientation and hole alignment.
Can CNC routing be used after PCB assembly?
Yes, routed depaneling is widely used for separating boards from panels, including some assembled panels. The panel must be designed with suitable tabs, keepout areas and support so that routing does not damage components or solder joints.
What is the biggest mistake in PCB CNC work?
The most common mistake is treating PCB CNC as ordinary engraving. A board must meet electrical clearance, mechanical fit and assembly requirements at the same time. Good results come from matching the PCB layout to the actual tools, verifying the CAM output and inspecting both dimensions and circuits after machining.
