How Do You Choose the Right Cutting Bit for Clean, Stable Machining?

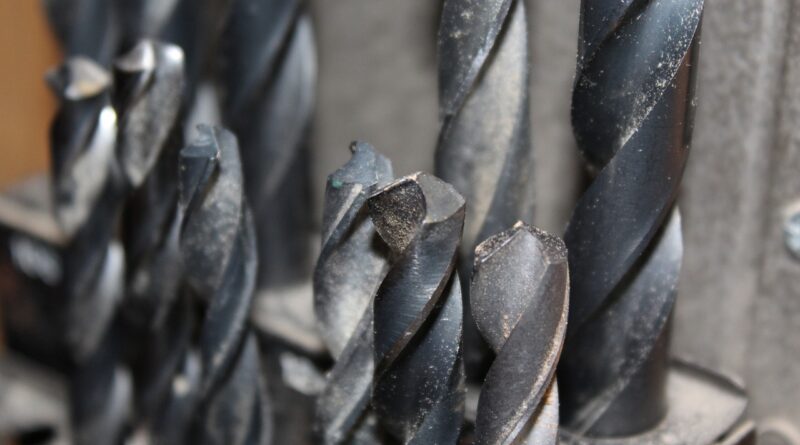

A cutting bit is small, but it can decide whether the part leaves the machine in spec or goes to scrap after a rough run. If you buy, quote, program, or run metal cutting jobs, the bit is not just a spare item on the shelf. It is the edge that turns spindle power into chips. For more tooling topics across milling, turning, drilling, and workholding, you can also visit the Cutting & Tooling section.
The first question is simple: what material does this edge need to cut, and what are the shop conditions? A carbide insert that cuts 6061 aluminum well may rub, chip, or pick up material when used on stainless steel. A high speed steel tool may last on a loose manual lathe, but it may lose time in a CNC production cell. Selection is not only about hardness. It also depends on the part material, operation, holder, machine, coolant, chip flow, and the cost of each usable edge.
Match the Bit to the Operation
Turning, milling, drilling, grooving, boring, and threading do not load the cutting edge in the same way. A lathe bit often cuts with steady contact and chip flow that is easier to control. A milling bit enters and leaves the cut many times, so the edge needs enough toughness. A drilling insert needs center strength, chip evacuation, and coolant access. Before comparing prices, name the operation and mark it as roughing, semi-finishing, or finishing.
Start With the Work Material
Steel, stainless steel, cast iron, aluminum, titanium, and hardened steel wear tools in different ways. ISO 513:2012 classifies hard cutting materials for chip-removal machining and covers hardmetals, ceramics, diamond, and boron nitride for defined cutting edges. That is why many catalogs use ISO material groups such as P, M, K, N, S, and H. Source: ISO, 2012. (iso.org)
Check the Machine and Holder First
A premium bit will not make up for a weak setup. Long overhang, worn spindle bearings, loose turret stations, or an old collet can break a good edge fast. Check runout, clamping length, insert seat damage, screw condition, and coolant direction. It is basic work, but a clean pocket and the correct insert screw torque can save more money than switching to a slightly cheaper grade.
Which Cutting Bit Material Works Best?
Tool material sets the limit for heat resistance, toughness, edge sharpness, and cutting speed. Do not buy by material name only. Look at the substrate, coating, geometry, and actual job. The same carbide family may have a hard grade for steady finishing and a tougher grade for interrupted cuts. The grade number on the box may look like a small detail, but it matters when a line is waiting for parts.
High Speed Steel for Tough, Low Cost Jobs
High speed steel is forgiving in many shop jobs. It takes a sharp edge, handles shock better than many hard materials, and can be ground into special forms for low-volume work. It fits repair shops, prototype benches, older manual machines, wood tooling, plastics, and odd profiles. Its weak point is heat. When cutting speed goes up, HSS falls behind carbide quickly.
Carbide for Heat and Production Work
Cemented carbide is the normal first choice for many CNC metal cutting jobs because it holds hardness at higher temperatures and works with modern coatings. Carbide grades are not all the same. A wear-resistant grade can run fast in stable steel turning, while a tougher grade may work better on scale, interrupted casting surfaces, or heavy roughing. If tool life changes from hour to hour, do not blame carbide first. Check chip thickness, coolant, work hardening, and vibration.
Ceramic, CBN, and PCD for Special Cases
Ceramic can run hot in the right cast iron or heat-resistant alloy jobs, but it does not like weak setups or heavy shock. CBN is used for hardened steels and some hard iron applications. PCD works well in aluminum, abrasive composites, graphite, and nonferrous work. It is usually not a good choice for ferrous metals because chemical wear becomes a problem at high heat. These tools cost more, so use them where part volume or finish requirements can pay for the edge.
Which Geometry Details Matter Most?
Geometry is where many tooling problems start. Two bits made from the same material can cut very differently if the edge prep, rake, clearance, chipbreaker, or nose radius changes. If the tool pushes instead of cuts, heat rises. If the edge is too sharp for a rough casting, it can chip. Good geometry does not call attention to itself; it just keeps the job running.
Rake Angle and Cutting Force
Positive rake cuts with less force, so it helps on thin-wall parts, lower horsepower machines, aluminum, and light finishing. Negative rake gives the edge more support and can handle heavy roughing, hard scale, and high feed work. It also needs more rigidity and power. When chatter starts, a more positive geometry can sometimes help more than simply slowing the spindle.
Nose Radius and Surface Finish
A larger nose radius can improve finish and give the edge more strength if the setup is rigid enough. It also adds radial force. On a slender shaft or boring bar, too much radius can start chatter. A smaller radius lowers cutting pressure and helps detail work, but it may wear faster in roughing. Many shops rough with a stronger edge and finish with a more controlled bit instead of using one bit for everything.
Chipbreaker Style and Chip Control
Chip control is a real production issue, not a cosmetic one. Long stringy chips can mark surfaces, wrap around tools, and slow loading. A finishing chipbreaker may need a lighter feed to curl chips. A roughing chipbreaker may need enough feed and depth of cut before it works properly. If chips come off like tangled wire, the feed may be too light, the chipbreaker may be wrong, or coolant may not be reaching the cutting zone.
How Should You Set Speed, Feed, and Depth of Cut?
Speed, feed, and depth of cut control heat, chip thickness, force, tool life, and cycle time. Catalog data is a starting point, not the final answer for every machine. In a NIST publication on high-speed machining, special attention is given to the effects of workpiece and tool materials on attainable cutting speeds, plus the need for better dynamic stability in milling. Source: NIST, 1997. (nist.gov)
Surface Speed Sets Heat
Surface speed is often the first number to check. If it is too slow, the edge may rub and build material. If it is too fast, the cutting bit can overheat and tool life can drop quickly. Sandvik Coromant product data for one square-shoulder milling insert lists a start value near 1200 sfm for a 175 HB steel group example and about 580 sfm for a 200 HB stainless group example, with the same listed 0.003 inch feed per tooth. This shows why the material group matters even when the cutter body looks the same. Source: Sandvik Coromant product data, crawled 2026. (sandvik.coromant.com)
Feed Builds the Chip
Feed is not only a productivity number. It makes the chip thick enough to move heat away from the edge. If feed is too light, the cutting bit may rub, polish, and work-harden the surface, especially in stainless steel and nickel alloys. If feed is too heavy, you may see edge chipping, high spindle load, or poor finish. Start with the catalog range, then listen to the cut and check the chip. Blue chips in steel can be normal with carbide, but smoke, squeal, and dust-like chips need attention.
Depth of Cut Tests Rigidity
Depth of cut affects cutting force and chip space. A deep axial cut with light radial engagement can work well in modern milling. A full slot at the same depth may overload the bit and pack chips. In turning, cutting below a hardened skin or casting scale can improve tool life because the edge avoids rubbing on the worst surface layer. There is still a limit. If the part bends or the holder starts to sing, reduce engagement or shorten the setup. See also: CNC Machining.
What Wear Signs Tell You to Change the Bit?
Changing too early wastes money. Changing too late can cause scrap, broken screws, damaged holders, and late deliveries. The useful habit is to read the edge before the part fails. Keep a small loupe near the machine if you can. It is cheap, and it helps.
Flank Wear on the Clearance Face
Flank wear shows on the side of the edge that rubs against the newly cut surface. A smooth wear land is normal during tool life. When that land gets too wide, size control moves, finish gets worse, and cutting force rises. If flank wear is the main failure mode, speed may be too high, the grade may be too soft, or abrasive scale may be wearing the edge.
Crater Wear on the Rake Face
Crater wear forms where the chip slides over the top face of the bit. It often points to heat and chemical wear. Coating choice, coolant method, and speed have a large effect here. Once the crater gets close to the cutting edge, failure can happen fast. Do not wait for a big break if the crater is already weakening the edge.
Chipping, Built Up Edge, and Notching
Chipping can come from shock, vibration, hard spots, weak edge strength, or the wrong grade. Built up edge means the work material is welding to the bit, often because the speed, coating, rake, or lubrication does not match the job. Notching at the depth-of-cut line is common in work-hardening alloys and scale. Each wear pattern points to a different cause, so saving a worn insert for review can help the next setup run better.
What Buying Details Prevent Expensive Mistakes?
The cheapest cutting bit is not always the lowest-cost choice. A bit that costs 30 percent less but loses half its tool life is usually not a bargain. A better buying question is direct: how many good parts does each edge make, and how much process risk does it add?
Standard Codes and Tool Data
Read insert shape, size, thickness, nose radius, tolerance, hole style, hand, chipbreaker, and grade before placing an order. For digital data, ISO 13399 provides a standardized way to represent and exchange cutting tool data. This helps catalogs, CAM systems, and tool databases use the same language. Source: ISO technical specification page, 2016. (iso.org)
Grade Availability and Repeat Orders
A test insert is not much help if it takes six weeks to get more. For production, check local stock, package quantity, alternate grades, and holder compatibility. Keep a record of the exact code that ran well. A missing suffix can mean a different chipbreaker, coating, or edge prep. That small difference can show up as chatter on Monday morning.
Total Cost per Edge
Count edge cost, tool life, cycle time, scrap risk, setup time, and holder damage. For example, if a $12 insert edge makes 80 parts, the edge cost is 15 cents per part. If a $7 edge makes 30 parts and needs more offsets, it costs over 23 cents per part before downtime. Simple shop math often beats guessing from a catalog page.
FAQ
Q1: What Is a Cutting Bit? A: A cutting bit is the replaceable or sharpened cutting edge used to remove material from a workpiece. It may be a lathe tool bit, an indexable insert, a drill insert, a milling insert, or a shaped tool for special cutting work.
Q2: Is Carbide Always Better Than High Speed Steel? A: No. Carbide usually wins in speed and heat resistance, especially in CNC production. High speed steel can be better for low-speed work, special forms, shock-heavy cuts, and older machines with limited rigidity.
Q3: Why Does the Same Bit Work in Steel but Fail in Stainless Steel? A: Stainless steel can work-harden, hold heat near the edge, and make stringy chips. You may need a different grade, sharper geometry, better coolant, stronger chip control, or a feed that keeps the bit cutting instead of rubbing.
Q4: How Do You Know When to Replace a Cutting Bit? A: Watch flank wear, surface finish, part size drift, spindle load, chip color, noise, and edge chipping. Replace the bit before wear damages the holder or causes scrap, not after the tool breaks.
Q5: What Safety Point Matters Most Around Cutting Bits? A: Keep hands away from the point of operation and control chips before they become a hazard. OSHA defines the point of operation as the area where work is performed on the material, and U.S. BLS data reported 332.6 thousand nonfatal injury and illness cases in manufacturing during 2024, with a rate of 2.7 cases per 100 full-time workers. Sources: OSHA machine guarding guidance and BLS 2024 SOII. (osha.gov)
