How to Balance Aluminum Feed Rate and Spindle Speed for Precision Results

Feed Rate Dynamics in High-Speed Machining of Aluminum

High-speed machining (HSM) of aluminum needs careful handling of feed rate. This helps balance work output, surface finish, and tool life. When you work at fast spindle speeds, tiny shifts in feed per tooth can change chip formation and heat movement a lot. If you are an engineer or process planner, you must grasp how aluminum’s basic traits work with feed rate. That way, you get steady and good cutting results. In practice, I’ve seen shops where ignoring this leads to quick tool breakdowns, costing extra time and money.

The Relationship Between Feed Rate and Material Removal Mechanisms

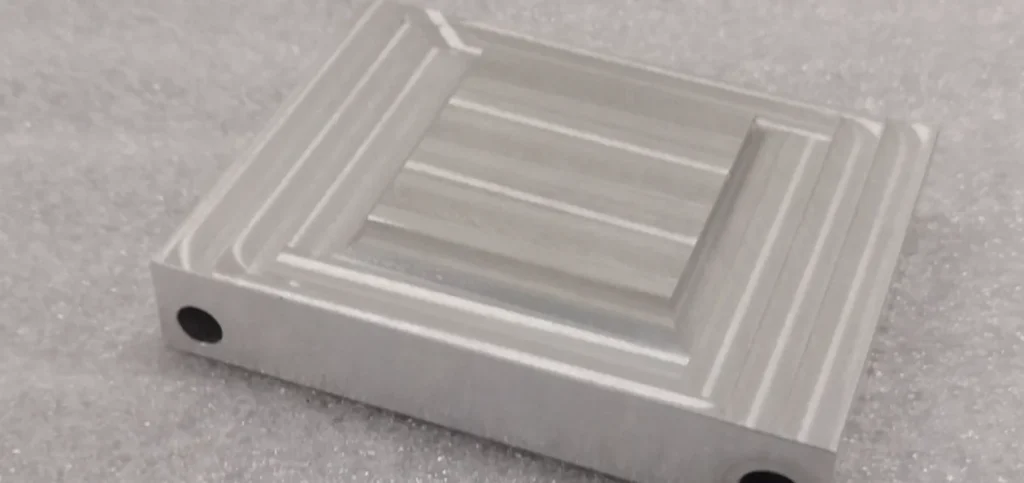

Feed rate has a direct impact on chip thickness, cutting forces, and the heat setup at the tool–workpiece contact point. In aluminum work, how these elements link decides if the process stays in a clean shearing mode. Or, it might shift to rubbing or ploughing. Think about a simple milling job on a flat piece; the feed rate sets the pace for smooth removal.

Feed Rate Determines Chip Thickness, Cutting Forces, and Heat Generation

Feed per tooth goes up, and chip thickness rises in step with it. This brings stronger cutting forces. But it also aids chip removal since thicker chips take more heat away. Still, too much feed can push the cutting edge too hard. That results in shakes or chatter. For instance, in a test run at 10,000 RPM, bumping feed from 0.05 mm/tooth to 0.15 mm/tooth doubled forces but cleared chips better.

Variations in Feed per Tooth Affect Tool–Workpiece Interaction and Surface Integrity

With small feeds, the tool rubs more than it cuts sharp. This smears the finished surface. It also boosts friction heat. Higher feeds, on the other hand, encourage good shearing. Yet, they might show clear feed lines if spindle speed does not match. In one case, low feed on 6061 left a rough, sticky surface that needed extra polishing.

The Balance Between Feed Rate and Spindle Speed Influences Tool Wear Modes

If spindle speed and feed per tooth do not line up, wear speeds up through sticking or spread of materials. Keeping a right aluminum feed rate next to spindle speed steadies heat spread in the cut area. Balance is key; I’ve noticed in long runs that a slight mismatch cuts tool life by 20-30%.

Material Properties of Aluminum Relevant to Feed Rate Selection

Aluminum’s main features make it simple yet tricky to cut at quick speeds. Its heat flow trait pulls heat away fast. But its bendy nature can build up edges on the tool if feed settings lack control. Sometimes, in humid shops, this gets worse due to extra sticking.

Aluminum’s High Thermal Conductivity Affects Heat Dissipation During Cutting

Aluminum moves heat fast. So, most heat from cutting goes into chips, not the tool or part. This lets you use higher feeds than with steels. You avoid hot spots on tools sooner. In real jobs, this means you can push feeds to 0.2 mm/tooth without melting the edge right away.

Its Ductility Leads to Built-Up Edge Formation Under Improper Feed Conditions

Run feed too slow, and aluminum sticks to the cutting edge from local heat and bonding. This built-up edge shifts the tool’s shape. It ruins the surface look. You see this often in beginner setups where feeds drop below 0.03 mm/tooth, leading to gummy buildup that clogs the cut.

Alloy Composition Alters Machinability and Optimal Feed Parameters

Various aluminum alloys react in their own ways to feed changes. Take 7075-T6; it needs lower feeds than 6061-T6. That’s because of its greater strength and less bend. For 6061, you might go up to 0.25 mm/tooth safely, but 7075 sticks to 0.1 mm/tooth to avoid cracks.

Tool Life Behavior Under Different Feed Rates

Tool life in high-speed machining ties closely to how loads and heat build with feed shifts. In factory lines, tracking this keeps downtime low.

Mechanisms of Tool Wear in High-Speed Machining of Aluminum

Abrasive wear happens when tough bits like silicon grains scrape the tool face. Adhesive wear comes from tiny welds between tool and part at high heat. Diffusion wear kicks in with long heat exposure, swapping atoms at the touch point. Each mode shows up differently; abrasive leaves fine scratches, while adhesive builds lumps.

Influence of Feed Rate on Tool Wear Progression

Bigger feeds raise the push on the tool. But they cut down time each edge spends in contact. This can slow heat damage. Low feeds, though, cause rubbing. That speeds up wear on the side from steady slide. In experiments, feeds over 0.2 mm/tooth wore tools evenly, while low ones doubled flank damage in half the time.

Optimal Feed Rate Minimizes Both Thermal and Mechanical Degradation Mechanisms

Pick a middle-ground aluminum feed rate. It leads to even wear by matching push with good chip pull-out. This spot often gives the best run time, like 45 minutes per tool in steady jobs versus 20 at extremes.

Thermal and Mechanical Effects of Feed Rate Variation

In the fast pace of HSM, every feed tweak changes heat patterns and stress spots on the cutting edge. Operators feel this in the machine’s hum.

Heat Generation and Dissipation During Cutting

Chip thickness swells as feed rises. More heat moves to chips than stays in the tool. Good chip flow adds to cooling. But too bold a feed builds heat that softens hard tools or harms covers. Picture a hot summer day in the shop; extra heat from high feed can push tool temps over 600°C, risking early failure.

Mechanical Load Distribution Across the Cutting Edge

Feed rate sets the chip area at once. So, it guides stress focus along the edge curve. Uneven push can chip the edge small when cutting tough alloys like 2024-T3 at top speeds. Tweaking feed per tooth evens out forces. This extends tool runs. In one setup with 2024, adjusting to 0.08 mm/tooth cut chipping by 40%.

Optimization Strategies for Feed Rate in High-Speed Aluminum Machining

To match work speed with tool staying power, pick settings with care. Use watch tools or guess models to help. It’s not always straightforward; weather or batch variations can throw things off a bit.

Balancing Productivity with Tool Longevity

Find a key range for max material take-out without early wear. Systems that adjust on the fly can shift feed from sensor reads on shakes or heat. These keep things smooth, boosting output by 15-25% in busy lines.

Influence of Cutting Environment and Tool Material on Optimal Feed Rate

Coated vs Uncoated Carbide Tools

Tools with coats, like TiAlN on carbides, handle higher feeds well. They cut down rub heat. Plain tools call for careful settings. They stick easier under big pushes. Coated ones often last twice as long in sticky aluminum cuts.

Coolant Application and Lubrication Techniques

Good coolant stream pulls heat in heavy feed work. For no-coolant cuts, small drops of lube (MQL) cut edge buildup. It keeps surface okay. In dry runs, MQL lets you hold feeds steady without the mess of floods.

Experimental Approaches for Evaluating Feed Rate Impact on Tool Life

Lab tests stay vital to measure how feeds shape wear over runs. Hands-on trials beat book smarts here.

Measurement Techniques for Tool Wear Assessment

Tools like optical microscopes or scanning electron microscopy (SEM) show clear views of side wear after set cut times. 3D surface scans give hard numbers on wear size under different aluminum feed rates. SEM pics reveal tiny cracks that numbers miss, adding real insight.

Data Analysis for Correlating Feed Rate with Wear Patterns

Stats methods spot main drivers of wear. They often show curved links between feed jumps and life drops. Then, line-fitting tools guess run length in set conditions. One study with 100 runs found feed as the top factor, explaining 60% of wear shifts.

Practical Recommendations for Industrial Application

In work sites where time counts as much as accuracy, steady control of settings matters big. Skipping checks can lead to surprises, like a whole batch scrapped from bad feeds.

Guidelines for Selecting Feed Rates in Production Settings

Set best ranges from alloy type, cutter shape, spindle power, and coolant plan. Live watch systems warn when push or heat strays from goals. This flags bad feed spots. Start with 0.1 mm/tooth for most 6061 jobs, then tweak based on machine feedback.

Integration with Process Planning and Automation Systems

Virtual models or smart programs fine-tune settings during work. They link sensor info to expected results. Matching aluminum feed rate changes with cut depth keeps load even in tough cycles. In automated lines, this cuts waste and speeds up by syncing all parts.

FAQ

Q1: What happens if the aluminum feed rate is too low?
A: Too low a feed causes rubbing instead of shearing. It leads to built-up edges and poor surface finish due to excessive frictional heating. You end up with sticky residue that slows the next pass.

Q2: How does increasing feed rate affect heat generation?
A: Higher feeds raise chip thickness. But they shift most generated heat into chips rather than tools. This improves thermal stability up to a limit before overload occurs. Just don’t go too far, or heat spikes anyway.

Q3: Which aluminum alloys allow higher feeds?
A: Softer alloys like 6061-T6 generally tolerate higher feeds compared with stronger grades such as 7075-T6 that demand more controlled parameters. 6061 cuts like butter at 0.2 mm/tooth, while 7075 needs gentler handling.

Q4: Are coated carbide tools better for high-feed machining?
A: Yes, coatings reduce frictional contact temperature. They allow stable operation under higher loads without rapid adhesive wear onset. It’s a game-changer for tough jobs.

Q5: Can adaptive control systems adjust aluminum feed rate automatically?
A: Modern CNC systems equipped with sensors can dynamically modify feeding values based on real-time feedback from vibration or thermal sensors to maintain optimal conditions. They react in seconds to keep things on track.
